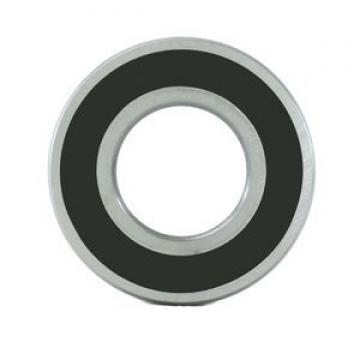

1207SK NTN 35x72x17mm  Nlim (oil) 10.000 rpm Self aligning ball bearings

1207SK NTN 35x72x17mm Nlim (oil) 10.000 rpm Self aligning ball bearings

rs min1.1 mmAssociated sleeve referenceH207X e0.23 Y12.7 Y24.2 Y02.8 Radial clearance classCN Precision classP0 Mass0.32 kgDynamic load, C15.9 kNStatic load, C05.1 kNNlim (oil)10.000 rpmNlim (grease)8.500 rpmMin operating temperature, Tmin-20 °CMax operating temperature, Tmax120 °Cda min41.5 mmda max46 mmdb min38 mmCe min5 mmDa max65.5 mmra max1 …
Contact Us Now !

Product description

1207SK NTN 35x72x17mm Nlim (oil) 10.000 rpm Self aligning ball bearings

rs min 1.1 mm
Associated sleeve reference H207X
e 0.23
Y1 2.7
Y2 4.2
Y0 2.8
Radial clearance class CN
Precision class P0
Mass 0.32 kg
Dynamic load, C 15.9 kN
Static load, C0 5.1 kN
Nlim (oil) 10.000 rpm
Nlim (grease) 8.500 rpm
Min operating temperature, Tmin -20 °C
Max operating temperature, Tmax 120 °C
da min 41.5 mm
da max 46 mm
db min 38 mm
Ce min 5 mm
Da max 65.5 mm
ra max 1 mm
Bearing number 1207SK
Size (mm) 35x72x17
Brand NTN
Bore Diameter (mm) 35
Outer Diameter (mm) 72
Width (mm) 17
d 35 mm
D 72 mm
B 17 mm
C 17 mm
r min. 1.1 mm
da min. 41.5 mm
Da max. 65.5 mm
ra max. 1 mm
Weight 0.32 Kg
Basic dynamic load rating (C) 15.9 kN
Basic static load rating (C0) 5.1 kN
(Grease) Lubrication Speed 8 500 r/min
(Oil) Lubrication Speed 10 000 r/min
Calculation factor (e) 0.23
Calculation factor (Y0) 2.8
Calculation factor (Y1) 2.7
