CNC STAINLESS STEEL M8 495/295/190 MM XYZ LEAD SCREW/DELRIN NUT/BEARING SET

XYZ stainless steel 495/295/190 mm leadscrew-delrin nut-bearing assembly

Specifications

LEAD SCREW

Length
Diameter
Pitch
Material
Finish

DELRIN NUT

Thread
Material
Dimensions
Mounting
Hole pitch

BEARING

Bore diameter
Dimensions
Mounting
Hole pitch
Material
Color

495 mm /295 mm /190 mm
8 mm
1.25 mm
Stainless steel
Polished

M8 1.25 mm pitch
Delrin (acetal )
35 mm x 16 mm x 30 mm
2 hole fixing
20 mm

8 mm
35mm x 35 mm x 12 mm
4 hole fixing
25mm x 25mm
Composite
Light grey

Description

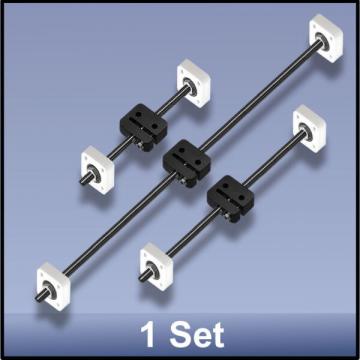

A complete set of 3 lead
screws, 3 anti-backlash delrin nuts, and 6 flange bearings with 12 M8
stainless steel fixing nuts, suitable for a desk-top CNC machine.

The 3 stainless steel lead screws are 495 mm, 295 mm and 190 mm overall
length. This set has been designed specifically for the CNC hobbyist in
mind, to provide a low cost solution for providing linear motion when
coupled with a stepper motor. This lead screw diameter is 8 mm with a
standard M8 1.25 mm pitch.

This pitch is ideal for small hobby CNC machines, where large speeds
are not required, as the fine pitch provides good precision whilst
requiring minimal force from a stepper motor, and thus is suitable for
direct drive with small stepper motors. Due to the high resolution
(0.00625 mm per full step on a standard 1.8 degree motor) vibration is
negligible and a simple drive can be used without micro-stepping, thus
further reducing cost.

The lead screws are supplied polished and fitted with our delrin
anti-backlash nuts which has a standard 1.25 mm pitch. Two flange bearings
are supplied for each lead screw which can be easily mounted onto a
flat surface of the machine member.

The delrin nut is manufactured from grade A delrin (Acetal homoplymer
B) supplied from a reputable European manufacturer. This material is
extremely hard wearing, and normally does not require lubrication. Due
to its mechanical properties there is minimum wear and backlash. The
form of the nut is as a rectangular block with 2 mounting holes, and as
such can be directly attached to the moving base, without need for
brackets or additional items.

The compact flange bearings provide convenient easy to mount bearings
in a housing with a matching 8 mm bore for the lead screw and has an 8
mm bore diameter.The compact size of this bearing is ideal for small
CNC machines where space is limited. The housing is made of a sturdy
high density composite material and is fitted with an 8 mm bore
bearing. The 6 flange bearings are supplied with 12 stainless steel
nuts for fixing to the stainless steel lead screw.

This item is shipped by registered international air mail
