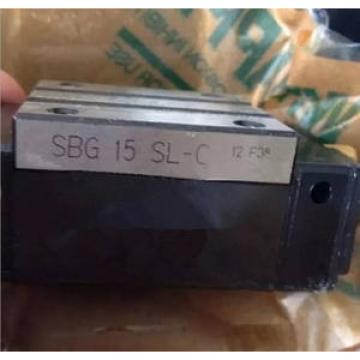

SBC LM Guide SBG15SL+280mm Linear Bearing CNC Lathe Mill Router 2Rails 2Block

SBC LM Guide SBG15SL+280mm Linear Bearing CNC Lathe Mill Router 2Rails 2Block

Automation, Motors & Drives>Linear Motion>Linear Bearings & Bushings SBC LM Guide SBG15SL+280mm Linear Bearing CNC Lathe Mill Router 2Rails 2Block Specification Model Number : SBG15SL+280mm Manufacturer : SBC Linear Country Of Origin : Korea Quantity: 1SET (2Rail, 2Blocks) Condition:  New LM Guide Type : Ball Type (normal pr…
Contact Us Now !

Product description

Automation, Motors & Drives>Linear Motion>Linear Bearings & Bushings

SBC LM Guide SBG15SL+280mm Linear Bearing CNC Lathe Mill Router 2Rails 2Block

Specification

Model Number : SBG15SL+280mm

Manufacturer : SBC Linear

Country Of Origin :
Korea

Quantity: 1SET
(2Rail, 2Blocks)

Condition:  New

LM Guide Type : Ball
Type (normal preload standard stock)

Main Size (Metric) :

  • Height (Rail Combination with Block) = 28mm
  • Width (Block width) = 34mm
  • Width (Rail
    width) = 15mm
  • Block
    upper surface fastening dimension = 26mm X 26mm

  • Rail hole pitch : 60mm
  • Rail hole size : Use
    M4 bolt

Length of track rail :
280mm

G value (A distance of the rail that end of the rail
to the first hole) :
G: 20mm , 20mm

Pi1tch of rail : 20 + ( 60 X 4times ) + 20



Length of track rail, there can be a difference of 1~2mm

The ball inside the block, can fall if you eject the block from rail

Preferably, don’t eject the block
from the rail.

But, don’t worry. The ball does not fall naturally, because
block’s angle holding the ball inside the block.

Compatible Table

Other
makers products that are compatible with this product for MAIN DIMENSION – (SBG15SL)





Type

Maker

Country Of Origin

SBG15SL

SBC Linear

Korea

SHS15R

THK

Japan

LH15AN

NSK

Japan

LWHD15

IKO

Japan

MSA15S

PMI

Taiwan

BRH15R

ABBA

Taiwan

HSR15R

THK

Japan, Korea

R1621 1

Rexroth Bosch(STAR)

Germany

HGH15CA

Hiwin

Taiwan



But,
Other maker of rail and other maker’s block is not compatible.(Mutually
exclusive)





Applications : for linear motion. Factory Automation system. CNC route



If You Want

  • If you want review actual item
    then request actual image before buying, send message. 🙂
  • You can purchase more quantity of goods. Please
    message to us. Actual item quantity is more exist.
  • If you have any
    questions about product or shipping method, send message us and we will
    help your business with pleasure.
  • If you have
    any request about CUSTOMS or shipping method please contact us before
    purchase.



Shipping Notice:

We Use shipping address by PAYPAL
Information.

Also let us know your
contact number (phone or mobile number) for accurate delivery.

Or you check your shipping address and information before you buy.
(delivery address and PAYPAL address should same)



This item will be shipped via
FEDEX service or equivalent shipping service (EMS), it usually takes 5 to 10 days
to deliver. Sometimes it takes more than usual. Please understand it depends on
the customs and carrier of your country. But please don’t
worry. Most of the time it is delivered on time.

we serve to you free
shipping service, but you should consider duty, tax, or brokerage charge.

If you don’t want FEDEX,UPS,DHL shipping, please let us know.

  • FedEx : North
    America, Europe.
  • EMS : Commonwealth of
    Independent States (CIS-Russia, Ukraine…. And so on) China


France, South America and some county

  • UPS, DHL :
    consider extra charge – should calculate exact shipping fee.



If
you want to know exact carrier and delivery time please send message before
purchase.

It can be shipped more faster ship method  that add ship payment. (Priority FEDEX,UPS,DHL)



EMS Shipped parcel : You can find trace result at ” http://www.track-trace.com/post” without “-” Track Number.

  • Depending on
    the country, the track information of the Post office can’t display.



Tax Policy : Buyer’s duty

International Buyers (include
US customers) – Please Note:

Import duties, taxes, and charges are not included in the item price
or shipping cost. These charges are the buyer’s responsibility.

Please
check with your country’s customs office to determine what these additional
costs will be prior to bidding or buying.

If you have any request for customs clearance, please leave a note
when you order.



Business  and Shipping Hours:

9am to 6pm (UCT/GMT+9hour) Monday to Friday

We are closed on Weekends and all major Korea holidays.

Compare the time of Korea and your Country. : http://www.timeanddate.com/worldclock/

Current Korea Time : http://www.timeanddate.com/worldclock/city.html?n=235

Available Shipping
Hours:

9am to 2pm (Working Day – Monday ~ Friday )



Feedback:

Your
satisfaction is our goal. Please give us a feedback regarding our product and
service.

Your
feedback is valuable to us. Please help us to serve you better.

Please
contact us first before you give us a low rating in feedback. We will do our
best to resolve any issue for your complete satisfaction.



Payment:

Paypal
Only



Return Policy

Please contact us first before returning.

Return can be accepted within 14 days after item’s arrival, and it has to be in the original
condition as it was sent out.

Buyer is responsible for the postage of the returned item, and the
original postage cost is not refundable.

If you would like to exchange an item, additional postage charge
also will incur for dispatching the item back to you.





Thank you for your coming

We are very glad to help your business or hobby.





VISIT Industrial Parts STORE



Leader Singapore is authorized dealers in interchange all bearing types, including SBC LM Guide SBG15SL+280mm Linear Bearing CNC Lathe Mill Router 2Rails 2Block McGill CAMROL Cam Followers fag nsk skf timken ina koyo bearing configurations and advanced products such as housed units, integrated bearing assemblies, precision assemblies and cam followers, radial bearings, and thrust bearings. They are all available with a variety of options and clearances.
SBC LM Guide SBG15SL+280mm Linear Bearing CNC Lathe Mill Router 2Rails 2Block was been used on markets bearings, transmissions, gearboxes, belts, chain and related products, and offers a spectrum of powertrain rebuild and repair services. The Leader Singapore leading authority on tapered roller bearings.
