Home > Angular contact ball bearings > 105BER19H NSK r min. 1.1 mm 105x145x20mm Angular contact ball bearings

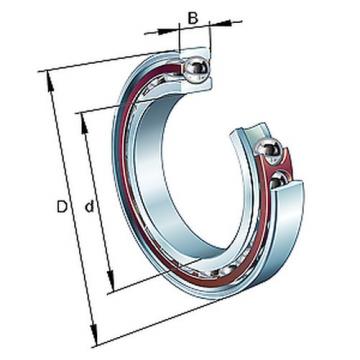

105BER19H NSK r min. 1.1 mm 105x145x20mm  Angular contact ball bearings

105BER19H NSK r min. 1.1 mm 105x145x20mm Angular contact ball bearings

Bearing number105BER19HSize (mm)105x145x20BrandNSKBore Diameter (mm)105Outer Diameter (mm)145Width (mm)20d105 mmD145 mmB20 mmC20 mmAngle (α)25 °a40.9 mmb0.7 mmr min.1.1 mmr1 min.0.6 mmA119 mmda min.112 mmDa max.138 mmra max.1 mmWeight0.693 KgBasic dynamic load rating (C)37 kNBasic static load rating (C0)35 kN(Grease) Lubrication Speed1280…
Contact Us Now !

Product description

105BER19H NSK r min. 1.1 mm 105x145x20mm Angular contact ball bearings

Bearing number105BER19H
Size (mm)105x145x20
BrandNSK
Bore Diameter (mm)105
Outer Diameter (mm)145
Width (mm)20
d105 mm
D145 mm
B20 mm
C20 mm
Angle (α)25 °
a40.9 mm
b0.7 mm
r min.1.1 mm
r1 min.0.6 mm
A119 mm
da min.112 mm
Da max.138 mm
ra max.1 mm
Weight0.693 Kg
Basic dynamic load rating (C)37 kN
Basic static load rating (C0)35 kN
(Grease) Lubrication Speed12800 r/min
