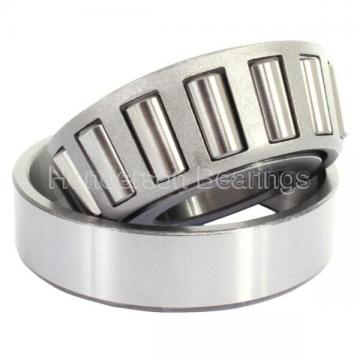

14130/14276 Timken Db 60 mm 33.338×69.012×19.845mm  Tapered roller bearings

14130/14276 Timken Db 60 mm 33.338×69.012×19.845mm Tapered roller bearings

Bearing number14130/14276Size (mm)33.338x69.012x19.845BrandTimkenBore Diameter (mm)33.338Outer Diameter (mm)69.012Width (mm)19.845d33.338 mmD69.012 mmT19.845 mmB19.583 mmC15.875 mmR3.6 mmr1.3 mma -4.3 mmDa63 mmdb46 mmda39.5 mmDb60 mmWeight0.34 KgBasic static load rating (C0)61.7 kNFactor (G1)18Factor (G2)13.3Factor (Cg)0.016Factor (K)1.53Basic dyna…
Contact Us Now !

Product description

14130/14276 Timken Db 60 mm 33.338×69.012×19.845mm Tapered roller bearings

Bearing number14130/14276
Size (mm)33.338×69.012×19.845
BrandTimken
Bore Diameter (mm)33.338
Outer Diameter (mm)69.012
Width (mm)19.845
d33.338 mm
D69.012 mm
T19.845 mm
B19.583 mm
C15.875 mm
R3.6 mm
r1.3 mm
a –4.3 mm
Da63 mm
db46 mm
da39.5 mm
Db60 mm
Weight0.34 Kg
Basic static load rating (C0)61.7 kN
Factor (G1)18
Factor (G2)13.3
Factor (Cg)0.016
Factor (K)1.53
Basic dynamic load rating (C90)13.1
Basic dynamic load rating (Ca90)8.57
Basic dynamic load rating (C1)50.6 kN
Calculation factor (e)0.38

Cross-reference to other manufacturer’s part number

KSO40-PP Linear bearings

K4:3 mm , Basic dynamic load rating (C):10.2 kN , K1:3.5 mm , Angle (?):54 ° , Weight:0.259 Kg
120RJ92 Cylindrical roller bearings

r max:2 mm , C:76.2 mm , F:137 mm , B:76.2 mm , E:198 mm , D:215 mm
SIJK16C/B1 Plain bearings

Thread (G):M16×1.5 , Basic dynamic load rating (C):23 kN , W:24 mm , Angle:14 ° , Weight:0.25 Kg
15112/15244 Tapered roller bearings

C:15.875 mm , T:20.638 mm , r:1.3 mm , R:3.5 mm , B:20.638 mm
SE0725 Angular contact ball bearings

Width :10.000mm , d:36.443 mm , C:10.000 mm , B:10.000 mm , D:52.000 mm
AST50 WC32IB Plain bearings

Housing Counterbore Diameter, Nominal (HD):3.250 , Housing Counterbore Depth (Ha):0.07 , Housing Counterbore Diameter Tolerance (HD tol.) – +.010 / -0:+.010 / 0 , Material:Carbon steel shell with PTFE / Fiber lining , Housing Counterbore Depth Tolerance (Ha tol.) – +.010 / -.010:+.010 / .010 , Mounting Hole Pitch Dia. (dp):2.755
RAX 740 Complex bearings

Static load rating axial (C0):96 kN , Eb:43 mm , Dynamic load rating radial (C):26.2 kN , Weight:0.086 Kg , Dynamic load rating axial (C):20.4 kN , Static load rating radial (C0):51 kN
16002 Deep groove ball bearings

B:8.000 mm , C:8.000 mm , d:15.000 mm , Width :8.000mm , D:32.000 mm , Outer Diameter :32.000mm
MX-RE2224V Thrust roller bearings

d:110.000 mm , Bore Diameter :110.000mm , Outer Diameter :186.000mm , H:154.000 mm , Width :154.000mm , D:186.000 mm
T113W Thrust roller bearings

D:55.562 mm , R:0.8 mm , T:15.875 mm , d:28.829 mm
