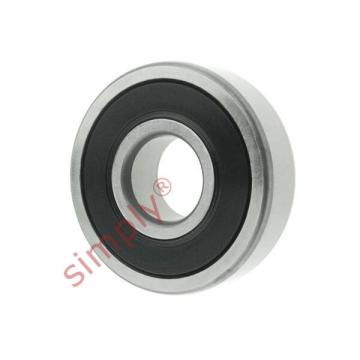

16004 NSK 20x42x8mm  Basic static load rating (C0) 4.45 kN Deep groove ball bearings

16004 NSK 20x42x8mm Basic static load rating (C0) 4.45 kN Deep groove ball bearings

CategorySingle Row Ball BearingsBDI Inventory3.0Manufacturer NameNSKMinimum Buy QuantityN/AWeight / Kilogram0.05EAN0029176059391Product Group - BDIB00308EnclosureOpenPrecision ClassABEC 1 | ISO P0Maximum Capacity / Filling SlotNoRolling ElementBall BearingSnap RingNoInternal Special FeaturesNoCage MaterialSteelInternal ClearanceC0-MediumInch - Metr…
Contact Us Now !

Product description

16004 NSK 20x42x8mm Basic static load rating (C0) 4.45 kN Deep groove ball bearings

CategorySingle Row Ball Bearings
BDI Inventory3.0
Manufacturer NameNSK
Minimum Buy QuantityN/A
Weight / Kilogram0.05
EAN0029176059391
Product Group – BDIB00308
EnclosureOpen
Precision ClassABEC 1 | ISO P0
Maximum Capacity / Filling SlotNo
Rolling ElementBall Bearing
Snap RingNo
Internal Special FeaturesNo
Cage MaterialSteel
Internal ClearanceC0-Medium
Inch – MetricMetric
Long Description20MM Bore; 42MM Outside Diameter; 8MM Outer Race Diameter; Open; Ball Bearing; ABEC 1 | ISO P0; No Filling Slot; No Snap Ring; No Internal Special Features
Category – BDISingle Row Ball Bearing
UNSPSC31171504
Harmonized Tariff Code8482.10.50.68
NounBearing
Keyword StringBall
Manufacturer URLhttp://www.nskamericas.com
Weight / LBS0.11
Outside Diameter1.654 Inch | 42 Millimeter
Outer Race Width0.315 Inch | 8 Millimeter
Bore0.787 Inch | 20 Millimeter
Bearing number16004
Size (mm)20x42x8
BrandNSK
Bore Diameter (mm)20
Outer Diameter (mm)42
Width (mm)8
d20 mm
D42 mm
B8 mm
C8 mm
r min.0.3 mm
da min.22 mm
Da max.40 mm
ra max.0.3 mm
Weight0.048 Kg
Basic dynamic load rating (C)7.9 kN
Basic static load rating (C0)4.45 kN
(Grease) Lubrication Speed18 000 r/min
(Oil) Lubrication Speed20 000 r/min
bore diameter:20 mm
static load capacity:4450 N
outside diameter:42 mm
precision rating:Not Rated
overall width:8 mm
finish/coating:Uncoated
bore type:Round
cage material:Steel
closure type:Open
outer ring width:8 mm
row type & fill slot:Single Row Non-Fill Slot
fillet radius:0.3 mm
internal clearance:C0
maximum rpm:20000 RPM
dynamic load capacity:7900 N
series:160
SRI2.88
hidYobi16004
LangID1
D_42
SREX0.015
B_8
CADhttps://service.web2cad.co.jp/pcom/maker_login.php?Maker=NSK_RB&language=ja&info=nsk_rb/roller_bearings/deep_groove_bb/single_row_dgbb/open_type_asmtab.prj&varset={STAN=(gevmsg NSK_RB 210)}.{ORDER=16004}.{SD=20}.{D=42}.{B=8}.{R=0.3}.{CR1=7900}.{COR1=4450}.{FO=14.5}.{LG=18000}.{LO=20000}.{DAM1=22.0}.{DA1=0.0}.{DA2=40.0}.{RA=0.3}.{MASS=0.048}
da min22
hidTableecat_NSRDGB
Oil rpm20000
SRE2.88
mass0.048
GRS rpm18000
ra0.3
SRIX0.015
D_a40
SRIN-0.015
C04.45
fo14.5
SREN-0.015
DE_36.556
Prod_Type3DGBB_SR_OT
DA_5.556
bomp0
Z_10
yobi16004
C_conv7900
ALPHA_0
SDM_31
r0.3
KBRG6101
SBRG0
DI_25.444
calcUrl/BearingGuide/html/calculation.jsp
