Home > Deep groove ball bearings > 16101-2RS1 SKF 12x30x8mm Limiting speed 16000 r/min Deep groove ball bearings

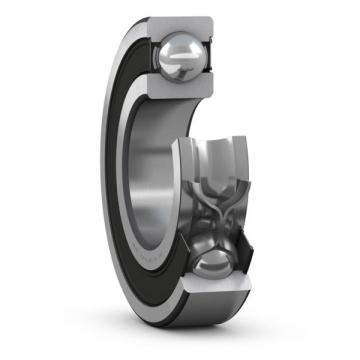

16101-2RS1 SKF 12x30x8mm  Limiting speed 16000 r/min Deep groove ball bearings

16101-2RS1 SKF 12x30x8mm Limiting speed 16000 r/min Deep groove ball bearings

Bearing number16101-2RS1Size (mm)12x30x8BrandSKFBore Diameter (mm)12Outer Diameter (mm)30Width (mm)8d12 mmD30 mmB8 mmC8 mmd116.7 mmd2– mmr1 min.14.4 mmr2 min.14.4 mmD124.8 mmD20.3 mmda min.16.6 mmDa max.27.6 mmra max.0.3 mmWeight0.028 KgBasic dynamic load rating (C)5.07 kNBasic static load rating (C0)2.36 kNFatigue load limit (Pu)0.1Reference spe…
Contact Us Now !

Product description

16101-2RS1 SKF 12x30x8mm Limiting speed 16000 r/min Deep groove ball bearings

Bearing number16101-2RS1
Size (mm)12x30x8
BrandSKF
Bore Diameter (mm)12
Outer Diameter (mm)30
Width (mm)8
d12 mm
D30 mm
B8 mm
C8 mm
d116.7 mm
d2– mm
r1 min.14.4 mm
r2 min.14.4 mm
D124.8 mm
D20.3 mm
da min.16.6 mm
Da max.27.6 mm
ra max.0.3 mm
Weight0.028 Kg
Basic dynamic load rating (C)5.07 kN
Basic static load rating (C0)2.36 kN
Fatigue load limit (Pu)0.1
Reference speed– r/min
Limiting speed16000 r/min
Calculation factor (f0)13
CategorySingle Row Ball Bearings
BDI Inventory0.0
Manufacturer NameSKF
Minimum Buy QuantityN/A
Weight / Kilogram0.03
EAN7316570953749
Product Group – BDIB00308
Enclosure2 Seals
Precision ClassABEC 1 | ISO P0
Maximum Capacity / Filling SlotNo
Rolling ElementBall Bearing
Snap RingNo
Internal Special FeaturesNo
Cage MaterialSteel
Enclosure TypeContact Seal
Internal ClearanceC0-Medium
Inch – MetricMetric
Long Description12MM Bore; 30MM Outside Diameter; 8MM Outer Race Diameter; 2 Seals; Ball Bearing; ABEC 1 | ISO P0; No Filling Slot; No Snap Ring; No Internal Special Features
Category – BDISingle Row Ball Bearing
UNSPSC31171504
Harmonized Tariff Code8482.10.50.68
NounBearing
Keyword StringBall
Manufacturer URLhttp://www.skf.com
Manufacturer Item Number16101-2RS1
Weight / LBS0.067
Outer Race Width0.315 Inch | 8 Millimeter
Bore0.472 Inch | 12 Millimeter
Outside Diameter1.181 Inch | 30 Millimeter
d117 mm
D224.72 mm
r1,2 min.0.3 mm
da min.14.4 mm
da max.16.6 mm
Da max.27.6 mm
ra max.0.3 mm
Basic dynamic load rating C5.07 kN
Basic static load rating C02.36 kN
Fatigue load limit Pu0.1 kN
Calculation factor kr0.025
Calculation factor f013.1
Mass bearing0.028 kg
