Home > Spherical roller bearings > 24132-2CS5/VT143 SKF 270x160x109mm Manufacturer Name SKF Spherical roller bearings

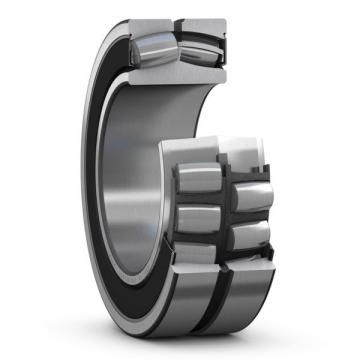

24132-2CS5/VT143 SKF 270x160x109mm  Manufacturer Name SKF Spherical roller bearings

24132-2CS5/VT143 SKF 270x160x109mm Manufacturer Name SKF Spherical roller bearings

Bearing number24132-2CS5/VT143Size (mm)270x160x109BrandSKFBore Diameter (mm)270Outer Diameter (mm)160Width (mm)109d160 mmD270 mmB109 mmd2176 mmD1239 mmb8.3 mmK4.5 mmr1,2 - min.2.1 mmda - min.172 mmda - max.176 mmDa - max.258 mmra - max.2 mmBasic dynamic load rating - C1229 kNBasic static load rating - C01760 kNFatigue load limit - Pu163 kNLimiting …
Contact Us Now !

Product description

24132-2CS5/VT143 SKF 270x160x109mm Manufacturer Name SKF Spherical roller bearings

Bearing number24132-2CS5/VT143
Size (mm)270x160x109
BrandSKF
Bore Diameter (mm)270
Outer Diameter (mm)160
Width (mm)109
d160 mm
D270 mm
B109 mm
d2176 mm
D1239 mm
b8.3 mm
K4.5 mm
r1,2 – min.2.1 mm
da – min.172 mm
da – max.176 mm
Da – max.258 mm
ra – max.2 mm
Basic dynamic load rating – C1229 kN
Basic static load rating – C01760 kN
Fatigue load limit – Pu163 kN
Limiting speed380 r/min
Calculation factor – e0.37
Calculation factor – Y11.8
Calculation factor – Y22.7
Calculation factor – Y01.8
CategoryBearings
BDI Inventory0.0
Manufacturer NameSKF
Minimum Buy QuantityN/A
Weight / Kilogram0
Product Group – BDIB04311
d2176 mm
D1239 mm
r1,2 min.2.1 mm
da min.172 mm
da max.176 mm
Da max.258 mm
ra max.2 mm
Basic dynamic load rating C1229 kN
Basic static load rating C01760 kN
Fatigue load limit Pu163 kN
Calculation factor e0.37
Calculation factor Y11.8
Calculation factor Y22.7
Calculation factor Y01.8
Mass bearing25 kg

Cross-reference to other manufacturer’s part number

239426B Thrust ball bearings

Basic static load rating (C0):217 kN , W:8 mm , (Grease) Lubrication Speed:2 100 r/min , Basic dynamic load rating (C):75 kN , Weight:4.19 Kg
2317-K Self aligning ball bearings

r2 min.:3 mm , Basic dynamic load rating (C):139 kN , Weight:7.5 Kg , Basic static load rating (C0):52 kN
294/530 M Thrust roller bearings

(Grease) Lubrication Speed:482 r/min , Basic dynamic load rating (C):10290 kN , Weight:650 Kg , Basic static load rating (C0):43120 kN
130RN03 Cylindrical roller bearings

C:58 mm , r max:3 mm , E:252 mm , B:58 mm , D:280 mm
AST650 F12014080 Plain bearings

ID Chamfer Length (Ci):1.200 , Material:Cast bronze with solid lubricant inserts. , Flange Dia. (Dfl pm 0.5):170.000 , ID Chamfer Angle (B deg.):15 , Bearing Length Tolerance (B tol.) – -0.10 / -0.30:0.10 / 0.30 , OD Chamfer Length (Co):3.000
51128M Thrust ball bearings

Weight (g):1.947.00 , Material:52100 chrome steel. or equivalent. , Bore Dia. Clearance (d1):142.0000 , Outer Dia. Pilot (D1):178.0000
TGB35186 Angular contact ball bearings

d:30 mm , D:126 mm , C:79 mm , Width :79mm
AST50 16IB20 Plain bearings

Material:Carbon steel shell with PTFE / Fiber lining , ID Chamfer Length (Ci):0.019 , Bearing Length Tolerance (B tol.) – +.010 / -0.010:+.010 / 0.010 , OD Chamfer Length (Co):0.026 , ID Chamfer Angle (B deg.):30
160RN51 Cylindrical roller bearings

D:250 mm , E:237 mm , C:40 mm , B:40 mm , r max:2 mm
29417 M Thrust roller bearings

(Grease) Lubrication Speed:1300 r/min , Basic dynamic load rating (C):633 kN , Basic static load rating (C0):1800 kN , Weight:6.75 Kg
