Home > Thrust roller bearings > 29230E NACHI 150x215x39mm Weight 4.60 Kg Thrust roller bearings

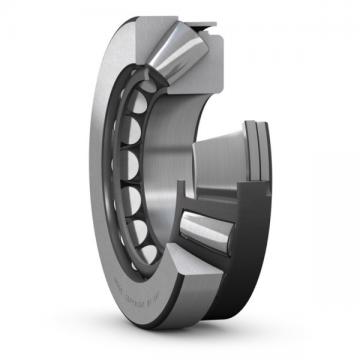

29230E NACHI 150x215x39mm  Weight 4.60 Kg Thrust roller bearings

29230E NACHI 150x215x39mm Weight 4.60 Kg Thrust roller bearings

Bearing number29230ESize (mm)150x215x39BrandNACHIBore Diameter (mm)150Outer Diameter (mm)215Width (mm)39d150 mmD215 mmT39 mmd1208 mmr min.1.5 mmA82 mmB114 mmB237 mmC19 mmD1178 mmda min.179 mmDa max.196 mmra max.1.5 mmWeight4.60 KgBasic dynamic load rating (C)335 kNBasic static load rating (C0)1390 kNBore TypeCylindrical BoreEnclosureOpenConfigurati…
Contact Us Now !

Product description

29230E NACHI 150x215x39mm Weight 4.60 Kg Thrust roller bearings

Bearing number29230E
Size (mm)150x215x39
BrandNACHI
Bore Diameter (mm)150
Outer Diameter (mm)215
Width (mm)39
d150 mm
D215 mm
T39 mm
d1208 mm
r min.1.5 mm
A82 mm
B114 mm
B237 mm
C19 mm
D1178 mm
da min.179 mm
Da max.196 mm
ra max.1.5 mm
Weight4.60 Kg
Basic dynamic load rating (C)335 kN
Basic static load rating (C0)1390 kN
Bore TypeCylindrical Bore
EnclosureOpen
ConfigurationSingle Row
Bore Size150 mm
Outside Diameter215 mm
Fillet Radius/Chamfer1.5 mm
Width39 mm
Dynamic Load Rating335.000 N
Static Load Rating1.390.000 N
Limiting Speed – Oil2.100 rpm
B14 mm
da (min)179 mm
Da (max)196 mm
ra (max)1.5 mm

Cross-reference to other manufacturer’s part number

23296EK Cylindrical roller bearings

Calculation factor (Y0):1.78 , Calculation factor (e):0.37 , Basic static load rating (C0):15400 kN , (Grease) Lubrication Speed:420 r/min , Calculation factor (Y1):1.82 , (Oil) Lubrication Speed:540 r/min
1312 Self aligning ball bearings

B:31.000 mm , Width :31.000mm , Outer Diameter :130.000mm , d:60.000 mm , D:130.000 mm , C:31.000 mm
SCE88 Needle roller bearings

Shaft (Fw):0.500 , Max Speed (Grease) (X1000 RPM):22.000 , Weight (g):7.00 , Material – Drawn cup: Hardened carbon steel alloy, Rollers:52100 Chrome steel or equivalent , Static Load Rating (Cor):2.030
YT 2428 Needle roller bearings

Basic dynamic load rating (C):36.8 kN , Fw:24 mm , Basic static load rating (C0):79.9 kN , C:28 mm , D:31 mm , Weight:0.054 Kg
PSL 612-318 Tapered roller bearings

Calculation factor (Y0):2.16 , Calculation factor (Y1):2.21 , Calculation factor (e):0.31 , (Oil) Lubrication Speed:190 r/min
20324-MB Spherical roller bearings

C0r:630000 N / Static load rating (radial) , Cr:490000 N / Dynamic load rating (radial) , Cur:52000 N / Fatigue limit load. radial , nG:2750 1/min / Limiting speed
ZKLDF200 Thrust ball bearings

Basic dynamic load rating (C):4.5 kN , he:215 mm , hi:11 mm , Weight:11 Kg , Basic static load rating (C0):112 kN
23032AX Cylindrical roller bearings

Calculation factor (e):0.24 , (Oil) Lubrication Speed:3300 r/min , Calculation factor (Y1):2.79 , Calculation factor (Y0):2.73
305283 D Angular contact ball bearings

Calculation factor Y2:0.93 , Calculation factor Y0:0.52 , Mass bearing:10.6 kg , Calculation factor X:0.57 , Calculation factor Y1:0.55
SF0161Z Angular contact ball bearings

C:8.000 mm , Width :8.000mm , Outer Diameter :28.000mm , B:8.000 mm , D:28.000 mm , d:12.000 mm
