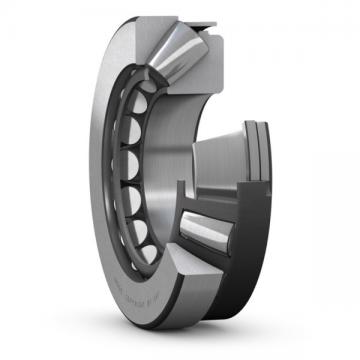

29356E NACHI 280x440x95mm  Enclosure Open Thrust roller bearings

29356E NACHI 280x440x95mm Enclosure Open Thrust roller bearings

Bearing number29356ESize (mm)280x440x95BrandNACHIBore Diameter (mm)280Outer Diameter (mm)440Width (mm)95d280 mmD440 mmT95 mmd1423 mmr min.5 mmA158 mmB132 mmB291 mmC46 mmD1348 mmda min.350 mmDa max.390 mmra max.4 mmWeight54 KgBasic dynamic load rating (C)1850 kNBasic static load rating (C0)7950 kNBore TypeCylindrical BoreEnclosureOpenConfigurationSi…
Contact Us Now !

Product description

29356E NACHI 280x440x95mm Enclosure Open Thrust roller bearings

Bearing number29356E
Size (mm)280x440x95
BrandNACHI
Bore Diameter (mm)280
Outer Diameter (mm)440
Width (mm)95
d280 mm
D440 mm
T95 mm
d1423 mm
r min.5 mm
A158 mm
B132 mm
B291 mm
C46 mm
D1348 mm
da min.350 mm
Da max.390 mm
ra max.4 mm
Weight54 Kg
Basic dynamic load rating (C)1850 kN
Basic static load rating (C0)7950 kN
Bore TypeCylindrical Bore
EnclosureOpen
ConfigurationSingle Row
Bore Size280 mm
Outside Diameter440 mm
Fillet Radius/Chamfer5 mm
Width95 mm
Dynamic Load Rating1.850.000 N
Static Load Rating7.950.000 N
Limiting Speed – Oil840 rpm
B32 mm
da (min)350 mm
Da (max)390 mm
ra (max)4 mm
