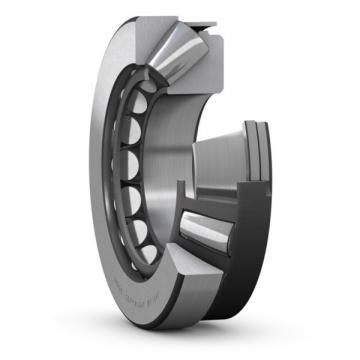

29417EX NACHI da (min) 130 mm 85x180x58mm Thrust roller bearings

Bearing number29417EXSize (mm)85x180x58BrandNACHIBore Diameter (mm)85Outer Diameter (mm)180Width (mm)58d85 mmD180 mmT58 mmd1158.2 mmr min.2.1 mmA54 mmB37 mmB150.6 mmC28 mmD1120.5 mmWeight6.69 KgBasic dynamic load rating (C)640 kNBasic static load rating (C0)1810 kN(Grease) Lubrication Speed1300 r/minCategoryRoller BearingsBDI Inventory0.0Manufactur…

Product description

29417EX NACHI da (min) 130 mm 85x180x58mm Thrust roller bearings

Bearing number	29417EX
Size (mm)	85x180x58
Brand	NACHI
Bore Diameter (mm)	85
Outer Diameter (mm)	180
Width (mm)	58
d	85 mm
D	180 mm
T	58 mm
d1	158.2 mm
r min.	2.1 mm
A	54 mm
B	37 mm
B1	50.6 mm
C	28 mm
D1	120.5 mm
Weight	6.69 Kg
Basic dynamic load rating (C)	640 kN
Basic static load rating (C0)	1810 kN
(Grease) Lubrication Speed	1300 r/min
Category	Roller Bearings
BDI Inventory	0.0
Manufacturer Name	NACHI
Minimum Buy Quantity	N/A
Weight / Kilogram	6.697
EAN	4991893558043
Product Group – BDI	B04311
Bore Type	Cylindrical Bore
Enclosure	Open
Configuration	Single Row
Bore Size	85 mm
Outside Diameter	180 mm
Fillet Radius/Chamfer	2.1 mm
Width	58 mm
Dynamic Load Rating	640.000 N
Static Load Rating	1.810.000 N
Limiting Speed – Grease	1.300 rpm
Limiting Speed – Oil	2.000 rpm
da (min)	130 mm
Da (max)	150 mm
ra (max)	2 mm
db1 (max)	94 mm
db2 (max)	94 mm
