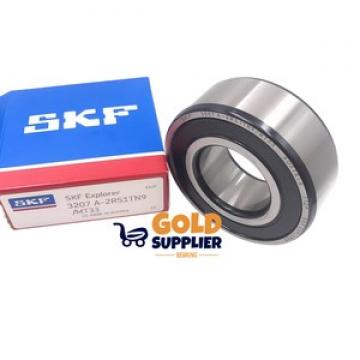

3207A-2RS1 SKF Basic dynamic load rating (C) 40 kN 35x72x27mm  Angular contact ball bearings

3207A-2RS1 SKF Basic dynamic load rating (C) 40 kN 35x72x27mm Angular contact ball bearings

Bearing number3207A-2RS1Size (mm)35x72x27BrandSKFBore Diameter (mm)35Outer Diameter (mm)72Width (mm)27d35 mmD72 mmB27 mmC27 mma42 mmd145.4 mmr1 min.1.1 mmr2 min.1.1 mmD163.9 mmda min.42 mmda max45 mmDa max.65 mmra max.1 mmWeight0.44 KgBasic dynamic load rating (C)40 kNBasic static load rating (C0)28 kNFatigue load limit (Pu)1.18 Cross-reference to …
Contact Us Now !

Product description

3207A-2RS1 SKF Basic dynamic load rating (C) 40 kN 35x72x27mm Angular contact ball bearings

Bearing number3207A-2RS1
Size (mm)35x72x27
BrandSKF
Bore Diameter (mm)35
Outer Diameter (mm)72
Width (mm)27
d35 mm
D72 mm
B27 mm
C27 mm
a42 mm
d145.4 mm
r1 min.1.1 mm
r2 min.1.1 mm
D163.9 mm
da min.42 mm
da max45 mm
Da max.65 mm
ra max.1 mm
Weight0.44 Kg
Basic dynamic load rating (C)40 kN
Basic static load rating (C0)28 kN
Fatigue load limit (Pu)1.18

Cross-reference to other manufacturer’s part number

4125 Thrust ball bearings

Outside Diameter:6.89 Inch | 175 Millimeter , Bore 2:5.039 Inch | 127.991 Millimeter , Bore 1:4.921 Inch | 125 Millimeter , Height:2.087 Inch | 53 Millimeter
RWCT27-C Thrust roller bearings

Minimum Buy Quantity:N/A , Product Group – BDI:B04144 , Manufacturer Name:SCHAEFFLER GROUP , Weight / Kilogram:5.111 , BDI Inventory:0.0
2LA-HSE909CG/GNP42 Angular contact ball bearings

Angle (α):15 ° , B:12 mm , d:45 mm , C:12 mm , D:68 mm
23222EAKW33 Thrust roller bearings

Outer Diameter :200.000mm , H:69.800 mm , Bore Diameter :110.000mm , Width :69.800mm , D:200.000 mm , d:110.000 mm
NAXR25Z.TN Complex bearings

Thrust:6.70 , rs:0.6 , (Refer.)Mass(kg):0.152 , Radial:4.80
AST11 4530 Plain bearings

ID Chamfer Length (Ci):0.600 , Material:Bronze shell with PTFE / Fiber lining , OD Chamfer Length (Co):1.800 , ID Chamfer Angle (B deg.):45
14126D/14283 Tapered roller bearings

r:2.3 mm , B:39.182 mm , T:44.785 mm , R:1.5 mm
SCH1610 Needle roller bearings

Material – Drawn cup: Hardened carbon steel alloy, Rollers:52100 Chrome steel or equivalent , Max Speed (Grease) (X1000 RPM):11.000 , Shaft (Fw):1.000 , Weight (g):35.00
NKIA59/22A Complex bearings

B:23.000 mm , C:23.000 mm , Width :23.000mm , Outer Diameter :39.000mm , d:22.000 mm , D:39.000 mm
160TPS166 Thrust roller bearings

R:752.48 mm , E:469.9 mm , D1:657.22 mm , H:633.4 mm
