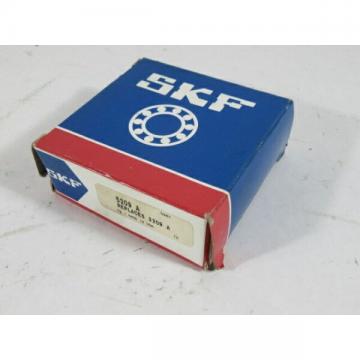

3209 A-2Z SKF 85x45x30.2mm  Calculation factor – X 0.63 Angular contact ball bearings

3209 A-2Z SKF 85x45x30.2mm Calculation factor – X 0.63 Angular contact ball bearings

Bearing number3209 A-2ZSize (mm)85x45x30.2BrandSKFBore Diameter (mm)85Outer Diameter (mm)45Width (mm)30.2d45 mmD85 mmB30.2 mmd252.8 mmD277.1 mmr1,2 - min.1.1 mma46 mmda - min.52 mmda - max.52.5 mmDa - max.78 mmra - max.1 mmBasic dynamic load rating - C51 kNBasic static load rating - C039 kNFatigue load limit - Pu1.6 kNReference speed7500 r/minLimit…
Contact Us Now !

Product description

3209 A-2Z SKF 85x45x30.2mm Calculation factor – X 0.63 Angular contact ball bearings

Bearing number3209 A-2Z
Size (mm)85x45x30.2
BrandSKF
Bore Diameter (mm)85
Outer Diameter (mm)45
Width (mm)30.2
d45 mm
D85 mm
B30.2 mm
d252.8 mm
D277.1 mm
r1,2 – min.1.1 mm
a46 mm
da – min.52 mm
da – max.52.5 mm
Da – max.78 mm
ra – max.1 mm
Basic dynamic load rating – C51 kN
Basic static load rating – C039 kN
Fatigue load limit – Pu1.6 kN
Reference speed7500 r/min
Limiting speed7500 r/min
Calculation factor – kr0.06
Calculation factor – e0.8
Calculation factor – X0.63
Calculation factor – Y00.66
Calculation factor – Y10.78
Calculation factor – Y21.24
CategoryAngular Contact Ball Bearings
BDI Inventory0.0
Manufacturer NameSKF
Minimum Buy QuantityN/A
Weight / Kilogram0.674
EAN7316573930655
Product Group – BDIB00152
Enclosure2 Metal Shields
Flush GroundNo
Rolling ElementBall Bearing
Number of Rows of BallsDouble Row
Precision ClassABEC 3 | ISO P6
Maximum Capacity / Filling SlotNo
Snap RingNo
Cage MaterialSteel
Contact Angle30 Degree
Internal ClearanceC0-Medium
Number of Bearings1 (Single)
Inch – MetricMetric
Long Description45MM Bore; 85MM Outside Diameter; 30.2MM Width; 2 Metal Shields; No Flush Ground; Ball Bearing; Double Row of Balls; ABEC 3 | ISO P6; No Filling Slot; No Snap Ring
Category – BDIAngular Contact Ball Bearing
UNSPSC31171531
Harmonized Tariff Code8482.10.50.28
NounBearing
Keyword StringAngular Contact
Manufacturer URLhttp://www.skf.com
Manufacturer Item Number5209 A-2Z
Weight / LBS1.35
Outside Diameter3.346 Inch | 85 Millimeter
Width1.189 Inch | 30.2 Millimeter
Bore1.772 Inch | 45 Millimeter
d252.8 mm
D277.1 mm
r1,2 min.1.1 mm
da min.52 mm
da max.52.5 mm
Da max.78 mm
ra max.1 mm
Basic dynamic load rating C51 kN
Basic static load rating C039 kN
Fatigue load limit Pu1.63 kN
Calculation factor kr0.06
Calculation factor e0.8
Calculation factor X0.63
Calculation factor Y00.66
Calculation factor Y10.78
Calculation factor Y21.24
Mass bearing0.63 kg
