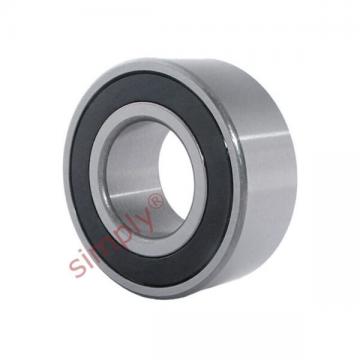

3213-B-TV NKE 65x120x38.1mm  B 38.1 mm Angular contact ball bearings

3213-B-TV NKE 65x120x38.1mm B 38.1 mm Angular contact ball bearings

Bearing number3213-B-TVSize (mm)65x120x38.1BrandNKEBore Diameter (mm)65Outer Diameter (mm)120Width (mm)38.1d65 mmD120 mmB38.1 mmC38.1 mmAngle (α)32 °a60 mmr1 min.1.5 mmr2 min.1.5 mmWeight1.8 KgBasic dynamic load rating (C)76.1 kNBasic static load rating (C0)68.8 kNLimiting speed4800 r/min Cross-reference to other manufacturer's part numbe…
Contact Us Now !

Product description

3213-B-TV NKE 65x120x38.1mm B 38.1 mm Angular contact ball bearings

Bearing number3213-B-TV
Size (mm)65x120x38.1
BrandNKE
Bore Diameter (mm)65
Outer Diameter (mm)120
Width (mm)38.1
d65 mm
D120 mm
B38.1 mm
C38.1 mm
Angle (α)32 °
a60 mm
r1 min.1.5 mm
r2 min.1.5 mm
Weight1.8 Kg
Basic dynamic load rating (C)76.1 kN
Basic static load rating (C0)68.8 kN
Limiting speed4800 r/min

Cross-reference to other manufacturer’s part number

140RF92 Cylindrical roller bearings

B:82.6 mm , C:82.6 mm , E:231 mm , r max:2.5 mm
NKX 25 Complex bearings

Dynamic load rating axial (C):19.6 kN , Static load rating radial (C0):30.5 kN , Dynamic load rating radial (C):18.8 kN , Static load rating axial (C0):37.5 kN
1214 Self aligning ball bearings

Y1:3.48 , e:0.18 , (Refer.)Mass(kg):1.26 , Y0:3.64 , Y2:5.38
293/750 M Thrust roller bearings

(Grease) Lubrication Speed:367 r/min , Basic dynamic load rating (C):9183 kN , E:216 mm , Weight:770 Kg , Basic static load rating (C0):44100 kN
51144 Thrust ball bearings

fillet radius::1.1 mm , manufacturer product page::Click here , precision rating::ISO Class 0 , static load capacity::740000 N
AST20 28IB16 Plain bearings

Bearing Length Tolerance (B tol.) – +.010 / -0.010:+.010 / 0.010 , Material:Carbon steel shell with POM plastic liner , OD Chamfer Length (Co):0.070 , ID Chamfer Angle (B deg.):45 , ID Chamfer Length (Ci):0.031 , Lube Hole Dia. (dl):0.313
SCH1010 Needle roller bearings

Static Load Rating (Cor):3.750 , Weight (g):16.00 , Material – Drawn cup: Hardened carbon steel alloy, Rollers:52100 Chrome steel or equivalent , Shaft (Fw):0.625 , Max Speed (Grease) (X1000 RPM):17.600
16017 Deep groove ball bearings

B:14 mm , Basic static load rating (C0):32.9 kN , C:14 mm , Basic dynamic load rating (C):35.1 kN , (Grease) Lubrication Speed:5126 r/min , Weight:0.63 Kg
16010 Deep groove ball bearings

Outer Diameter :80.000mm , C:10.000 mm , d:50.000 mm , D:80.000 mm , B:10.000 mm , Width :10.000mm
09081/09195 Tapered roller bearings

Weight:0.17 Kg , (Grease) Lubrication Speed:8000 r/min , Basic dynamic load rating (C):39.7 kN , a:9.1 mm , Basic static load rating (C0):40.5 kN
