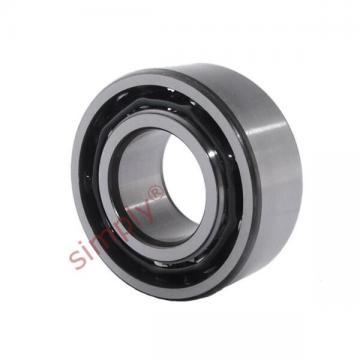

3214-B NKE Basic static load rating (C0) 72.6 kN 70x125x39.7mm  Angular contact ball bearings

3214-B NKE Basic static load rating (C0) 72.6 kN 70x125x39.7mm Angular contact ball bearings

Bearing number3214-BSize (mm)70x125x39.7BrandNKEBore Diameter (mm)70Outer Diameter (mm)125Width (mm)39.7d70 mmD125 mmB39.7 mmC39.7 mmAngle (α)32 °a62 mmr1 min.1.5 mmr2 min.1.5 mmWeight1.9 KgBasic dynamic load rating (C)79.2 kNBasic static load rating (C0)72.6 kNLimiting speed4500 r/min Cross-reference to other manufacturer's part number 2…
Contact Us Now !

Product description

3214-B NKE Basic static load rating (C0) 72.6 kN 70x125x39.7mm Angular contact ball bearings

Bearing number3214-B
Size (mm)70x125x39.7
BrandNKE
Bore Diameter (mm)70
Outer Diameter (mm)125
Width (mm)39.7
d70 mm
D125 mm
B39.7 mm
C39.7 mm
Angle (α)32 °
a62 mm
r1 min.1.5 mm
r2 min.1.5 mm
Weight1.9 Kg
Basic dynamic load rating (C)79.2 kN
Basic static load rating (C0)72.6 kN
Limiting speed4500 r/min

Cross-reference to other manufacturer’s part number

22214EXK Cylindrical roller bearings

(Grease) Lubrication Speed:4000 r/min , Calculation factor (e):0.24 , Basic static load rating (C0):220 kN , (Oil) Lubrication Speed:5300 r/min , Calculation factor (Y1):2.87 , Calculation factor (Y0):2.8
AXK460X490X5 Needle roller bearings

Weight / Kilogram:0.4 , Minimum Buy Quantity:N/A , Product Group – BDI:B04144 , EAN:4012802707434
3220-2RS Angular contact ball bearings

B1:60.3 mm , a:85.4 mm , Basic dynamic load rating (C):187 kN , C:60.3 mm , Basic static load rating (C0):175 kN , Weight:5.5 Kg
NP064953/NP841384 Tapered roller bearings

Width :30.162mm , d:50.8 mm , Outer Diameter :111.125mm , D:111.125 mm , B:26.909 mm , T:30.162 mm
SIKB16F Plain bearings

Thread (G):M16 Tolerance 6H , Weight:0.23 Kg , w:22 Tolerance h14 , Basic dynamic load rating (C):21.4 kN , Angle:15 °
EXF318 Bearing units

Thread (G):M10x1 , A2:116.3 mm , N:35 mm , Weight:19.3 Kg , Basic dynamic load rating (C):143 kN
09081/09195 Tapered roller bearings

(Grease) Lubrication Speed:8500 r/min , Weight:0.179 Kg , C:14.288 mm , Basic static load rating (C0):39 kN , Basic dynamic load rating (C):38.5 kN
13889/13830 Tapered roller bearings

Calculation factor (e):0.35 , Basic static load rating (C0):33.1 kN , (Grease) Lubrication Speed:5800 r/min , Calculation factor (Y0):0.95 , (Oil) Lubrication Speed:7700 r/min
TUP2 140.50 Plain bearings

θ:9.5 mm , L:50 mm , f1:1.6 mm , f2:0.8 mm
VSI 20 0944 N Thrust ball bearings

Dynamic load rating radial (C):151 kN , Weight:76 Kg , Static load rating radial (C0):570 kN , Dynamic load rating axial (C):231 kN , daZT:941 mm
