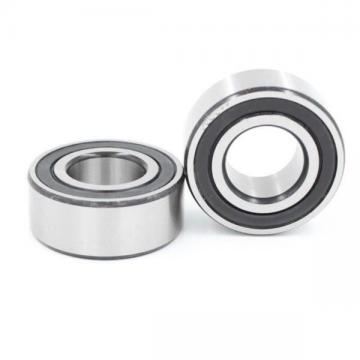

3304-B-TVH FAG 20x52x22.2mm  Basic dynamic load rating (C) 23.2 kN Angular contact ball bearings

3304-B-TVH FAG 20x52x22.2mm Basic dynamic load rating (C) 23.2 kN Angular contact ball bearings

Bearing number3304-B-TVHSize (mm)20x52x22.2BrandFAGBore Diameter (mm)20Outer Diameter (mm)52Width (mm)22.2d20 mmD52 mmB22.2 mmC22.2 mmAngle (α)25 °a26 mmd131.2 mmr min.1.1 mmD142.7 mmD2– mmda min.27 mmDa max.45 mmra max.1 mmWeight0.217 KgBasic dynamic load rating (C)23.2 kNBasic static load rating (C0)15 kNFatigue load limit (Pu)0.69Ref…
Contact Us Now !

Product description

3304-B-TVH FAG 20x52x22.2mm Basic dynamic load rating (C) 23.2 kN Angular contact ball bearings

Bearing number3304-B-TVH
Size (mm)20x52x22.2
BrandFAG
Bore Diameter (mm)20
Outer Diameter (mm)52
Width (mm)22.2
d20 mm
D52 mm
B22.2 mm
C22.2 mm
Angle (α)25 °
a26 mm
d131.2 mm
r min.1.1 mm
D142.7 mm
D2– mm
da min.27 mm
Da max.45 mm
ra max.1 mm
Weight0.217 Kg
Basic dynamic load rating (C)23.2 kN
Basic static load rating (C0)15 kN
Fatigue load limit (Pu)0.69
Reference speed9 900 r/min

Cross-reference to other manufacturer’s part number

2200 ETN9 Self aligning ball bearings

Mass bearing:0.047 kg , Calculation factor Y1:1.15 , Calculation factor Y0:1.3 , Calculation factor Y2:1.8 , Calculation factor kr:0.045 , Calculation factor e:0.54
TRU 9012550UU Cylindrical roller bearings

Basic dynamic load rating (C):119 kN , J:101 mm , Weight:1.74 Kg , C:50 mm , Basic static load rating (C0):240 kN , r min.:1.5 mm
K81115-TV Thrust roller bearings

Overall Height with Aligning Washer:0 Inch | 0 Millimeter , Bore 1:2.953 Inch | 75 Millimeter , Bore 2:2.953 Inch | 75 Millimeter , Height:0.295 Inch | 7.5 Millimeter
51114 Thrust ball bearings

Outer Diameter :95.000mm , H:18.000 mm , Bore Diameter :70.000mm , D:95.000 mm , d:70.000 mm , Width :18.000mm
LM8L Linear bearings

Weight:0.031 Kg , W:1.1 mm , L:45 mm , Basic dynamic load rating (C):0.43 kN
NJ 319 ECN2ML Thrust ball bearings

Fatigue load limit Pu:46.5 kN , Limiting value e:0.2 , Angle ring:
HJ 319 EC
, Calculation factor kr:0.23 , Axial load factor Y:0.6 , Mass bearing:7.17 kg
KBL0845-PP Linear bearings

Weight:0.031 Kg , L:45 mm , W:1.1 mm , Basic dynamic load rating (C):0.431 kN
SIJ20 Plain bearings

Thread (G):M20×1.5 , Weight:0.314 Kg , Angle:14 ° , Basic dynamic load rating (C):23 kN , W:30 mm
SIJ 100 ES Plain bearings

Mass rod end:29.5 kg , Specific dynamic load factor K:100 N/mm² , Basic static load rating C0:780 kN , Material constant KM:330
TAPR 420 N Plain bearings

Angle:9 ° , Thread (G):M16x1.5 , d5:46 r/min , Weight:0.45 Kg , Basic dynamic load rating (C):30 kN
