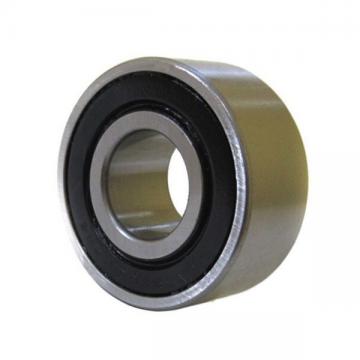

3309-B-2RSR-TVH FAG D2 86.5 mm 45x100x39.7mm  Angular contact ball bearings

3309-B-2RSR-TVH FAG D2 86.5 mm 45x100x39.7mm Angular contact ball bearings

Bearing number3309-B-2RSR-TVHSize (mm)45x100x39.7BrandFAGBore Diameter (mm)45Outer Diameter (mm)100Width (mm)39.7d45 mmD100 mmB39.7 mmC39.7 mmAngle (α)25 °a50 mmd162 mmr min.1.5 mmD1– mmD286.5 mmda min.54 mmDa max.91 mmra max.1.5 mmWeight1.36 KgBasic dynamic load rating (C)68 kNBasic static load rating (C0)51 kNFatigue load limit (Pu)2.…
Contact Us Now !

Product description

3309-B-2RSR-TVH FAG D2 86.5 mm 45x100x39.7mm Angular contact ball bearings

Bearing number3309-B-2RSR-TVH
Size (mm)45x100x39.7
BrandFAG
Bore Diameter (mm)45
Outer Diameter (mm)100
Width (mm)39.7
d45 mm
D100 mm
B39.7 mm
C39.7 mm
Angle (α)25 °
a50 mm
d162 mm
r min.1.5 mm
D1– mm
D286.5 mm
da min.54 mm
Da max.91 mm
ra max.1.5 mm
Weight1.36 Kg
Basic dynamic load rating (C)68 kN
Basic static load rating (C0)51 kN
Fatigue load limit (Pu)2.95
Reference speed– r/min

Cross-reference to other manufacturer’s part number

51160-MP Thrust ball bearings

r1 min.:2 mm , Basic dynamic load rating (C):365 kN , Basic static load rating (C0):1600 kN , D1:304 mm , r2 min.:2 mm , Weight:17.7 Kg
15117/15245 Tapered roller bearings

DI_:39.355 , C_:14.288 , Z_:16 , yobi:15117/15245 , CONE:0.189 , KBRG:3171
140TMP12 Thrust roller bearings

calcUrl:/BearingGuide/html/calculation.jsp , t:14.5 , KBRG:4614 , r:2 , T_:46
UKPX10 Bearing units

Basic static load rating (C0):29.4 kN , Weight:4.6 Kg , N1:36 mm , Basic dynamic load rating (C):43.4 kN , Bolt (G):M16
TUP1 20.10 Plain bearings

f2:0.4 mm , d:20 mm , D:23 mm , f1:0.8 mm , L:10 mm
NKIB5903 Complex bearings

Bore 1:0.669 Inch | 17 Millimeter , Outside Diameter:1.181 Inch | 30 Millimeter , Height:0.787 Inch | 20 Millimeter , Bore 2:0.669 Inch | 17 Millimeter , Overall Height with Aligning Washer:0 Inch | 0 Millimeter
LMFP35LUU Linear bearings

â„“:10 Tolerance h14 , PCD:67 mm , Tolerance perpendicularity (C):25 , Weight:0.97 Kg , L:135 mm , Basic dynamic load rating (C):2.65 kN
234415 MSP Thrust ball bearings

Basic static load rating (C0):100 kN , (Grease) Lubrication Speed:5000 r/min , Weight:1.57 Kg , Basic dynamic load rating (C):44 kN
120RN92 Cylindrical roller bearings

D:215 mm , E:198 mm , r max:2 mm , B:76.2 mm , C:76.2 mm , F:137 mm
T200A Thrust roller bearings

Basic dynamic load rating (Ca90):73100 , Basic static load rating (C0):803000 kN , r:2.3 mm , Weight:1.09 Kg
