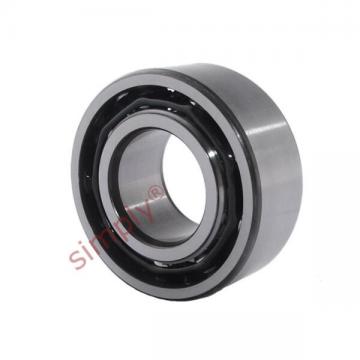

3309-B-2Z-TV NKE r2 min. 1.5 mm 45x100x39.7mm  Angular contact ball bearings

3309-B-2Z-TV NKE r2 min. 1.5 mm 45x100x39.7mm Angular contact ball bearings

Bearing number3309-B-2Z-TVSize (mm)45x100x39.7BrandNKEBore Diameter (mm)45Outer Diameter (mm)100Width (mm)39.7d45 mmD100 mmB39.7 mmC39.7 mmAngle (α)32 °a50 mmr1 min.1.5 mmr2 min.1.5 mmWeight1.4 KgBasic dynamic load rating (C)65.4 kNBasic static load rating (C0)48.9 kNLimiting speed6300 r/min Cross-reference to other manufacturer's part nu…
Contact Us Now !

Product description

3309-B-2Z-TV NKE r2 min. 1.5 mm 45x100x39.7mm Angular contact ball bearings

Bearing number3309-B-2Z-TV
Size (mm)45x100x39.7
BrandNKE
Bore Diameter (mm)45
Outer Diameter (mm)100
Width (mm)39.7
d45 mm
D100 mm
B39.7 mm
C39.7 mm
Angle (α)32 °
a50 mm
r1 min.1.5 mm
r2 min.1.5 mm
Weight1.4 Kg
Basic dynamic load rating (C)65.4 kN
Basic static load rating (C0)48.9 kN
Limiting speed6300 r/min

Cross-reference to other manufacturer’s part number

USFTE206 Bearing units

Basic dynamic load rating (C):19.5 kN , Weight:1 Kg , Thread (G):R1/8" , A2:35 mm
EXPLE209 Bearing units

Thread (G):M6x1 , N1:24 mm , Basic dynamic load rating (C):31.85 kN , Weight:2.4 Kg
20MM2612 Needle roller bearings

b:9.6 mm , Weight:0.017 Kg , Basic static load rating (C0):20.4 kN , Basic dynamic load rating (C):10.6 kN
ZARF50115-TV Complex bearings

Manufacturer Name:SCHAEFFLER GROUP , EAN:4012802440102 , BDI Inventory:0.0 , Minimum Buy Quantity:N/A , Weight / Kilogram:2.515 , Product Group – BDI:B00234
CRBS 508 Thrust roller bearings

da:54 mm , r min.:0.4 mm , Basic dynamic load rating (C):4.9 kN , Weight:0.084 Kg , B:8 mm , Da:61 mm
100034X/100072 Tapered roller bearings

Weight:0.38 Kg , Da:64 mm , R:2 mm , F:5.25 mm , da:45 mm
UKC316H Bearing units

Weight:9.8 Kg , H:200 mm , Thread (G):M10x1 , W:4 mm , Basic dynamic load rating (C):122.85 kN
ZR1.14.1094.201-3SPTN Thrust roller bearings

Fi:1055 mm , dci:1091 mm , Ni:48 mm , Dce:1164 mm , Ne:48 mm
UKC210+H2310 Bearing units

Bore Diameter :45mm , A:33 mm , B1:55 mm , Width :120mm , d:45 mm , H:120 mm
UKT328H Bearing units

Basic dynamic load rating (C):275 kN , J2:380 mm , Weight:89.2 Kg , J1:50 mm
