Home > Thrust ball bearings > 51105 NACHI 25x42x11mm Overall Height with Aligning Washer 0 Inch | 0 Millimeter Thrust ball bearings

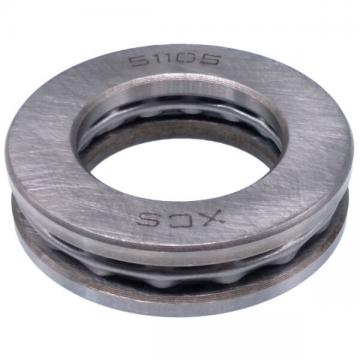

51105 NACHI 25x42x11mm  Overall Height with Aligning Washer 0 Inch | 0 Millimeter Thrust ball bearings

51105 NACHI 25x42x11mm Overall Height with Aligning Washer 0 Inch | 0 Millimeter Thrust ball bearings

Bearing number51105Size (mm)25x42x11BrandNACHIBore Diameter (mm)25Outer Diameter (mm)42Width (mm)11d25 mmD42 mmT11 mmd142 mmr min.0.6 mmD126 mmWeight0.059 KgBasic dynamic load rating (C)19.5 kNBasic static load rating (C0)37 kN(Grease) Lubrication Speed4600 r/minCategoryThrust Ball BearingBDI Inventory0.0Manufacturer NameNACHIMinimum Buy QuantityN/…
Contact Us Now !

Product description

51105 NACHI 25x42x11mm Overall Height with Aligning Washer 0 Inch | 0 Millimeter Thrust ball bearings

Bearing number51105
Size (mm)25x42x11
BrandNACHI
Bore Diameter (mm)25
Outer Diameter (mm)42
Width (mm)11
d25 mm
D42 mm
T11 mm
d142 mm
r min.0.6 mm
D126 mm
Weight0.059 Kg
Basic dynamic load rating (C)19.5 kN
Basic static load rating (C0)37 kN
(Grease) Lubrication Speed4600 r/min
CategoryThrust Ball Bearing
BDI Inventory0.0
Manufacturer NameNACHI
Minimum Buy QuantityN/A
Weight / Kilogram0.059
EAN4991893594218
Product Group – BDIB00308
Rolling ElementBall Bearing
Thrust BearingYes
Single or Double DirectionSingle Direction
BandedNo
Cage MaterialSteel
Precision ClassNon-Precision
Component DescriptionRoller Assembly Plus Raceways
Other FeaturesSingle Row | With Flat Seat
Long Description25MM Bore 1; 26MM Bore 2; 42MM Outside Diameter; 11MM Height; Ball Bearing; Single Direction; Not Banded; Steel Cage; Non-Precision
Inch – MetricMetric
Category – BDIThrust Ball Bearings
UNSPSC31171552
Harmonized Tariff Code8482.10.50.08
NounBearing
Keyword StringBall Thrust
Manufacturer URLhttp://www.nachi.com
Manufacturer Item Number51105BNLS
Weight / LBS0.13007
Outside Diameter1.654 Inch | 42 Millimeter
Height0.433 Inch | 11 Millimeter
Overall Height with Aligning Washer0 Inch | 0 Millimeter
Bore 10.984 Inch | 25 Millimeter
Bore 21.024 Inch | 26 Millimeter
