Home > Thrust ball bearings > 51106 NSK Bore 1 1.181 Inch | 30 Millimeter 30x47x11mm Thrust ball bearings

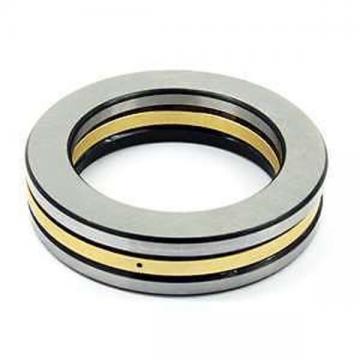

51106 NSK Bore 1 1.181 Inch | 30 Millimeter 30x47x11mm  Thrust ball bearings

51106 NSK Bore 1 1.181 Inch | 30 Millimeter 30x47x11mm Thrust ball bearings

Bearing number51106Size (mm)30x47x11BrandNSKBore Diameter (mm)30Outer Diameter (mm)47Width (mm)11d30 mmD47 mmT11 mmd147 mmr min.0.6 mmD132 mmda min.40 mmDa max.37 mmra max.0.6 mmWeight0.064 KgBasic dynamic load rating (C)20.6 kNBasic static load rating (C0)42 kN(Grease) Lubrication Speed4300 r/minCategoryThrust Ball BearingBDI Inventory0.0Manufactu…
Contact Us Now !

Product description

51106 NSK Bore 1 1.181 Inch | 30 Millimeter 30x47x11mm Thrust ball bearings

Bearing number51106
Size (mm)30x47x11
BrandNSK
Bore Diameter (mm)30
Outer Diameter (mm)47
Width (mm)11
d30 mm
D47 mm
T11 mm
d147 mm
r min.0.6 mm
D132 mm
da min.40 mm
Da max.37 mm
ra max.0.6 mm
Weight0.064 Kg
Basic dynamic load rating (C)20.6 kN
Basic static load rating (C0)42 kN
(Grease) Lubrication Speed4300 r/min
CategoryThrust Ball Bearing
BDI Inventory0.0
Manufacturer NameNSK
Minimum Buy QuantityN/A
Weight / Kilogram0.067
EAN0029176026416
Product Group – BDIB00308
Rolling ElementBall Bearing
Thrust BearingYes
Single or Double DirectionSingle Direction
BandedNo
Cage MaterialSteel
Precision ClassNon-Precision
Component DescriptionRoller Assembly Plus Raceways
Other FeaturesSingle Row | With Flat Seat
Long Description30MM Bore 1; 32MM Bore 2; 47MM Outside Diameter; 11MM Height; Ball Bearing; Single Direction; Not Banded; Steel Cage; Non-Precision
Inch – MetricMetric
Category – BDIThrust Ball Bearings
UNSPSC31171552
Harmonized Tariff Code8482.10.50.08
NounBearing
Keyword StringBall Thrust
Manufacturer URLhttp://www.nskamericas.com
Manufacturer Item Number51106
Weight / LBS0.1411
Bore 21.26 Inch | 32 Millimeter
Outside Diameter1.85 Inch | 47 Millimeter
Height0.433 Inch | 11 Millimeter
Overall Height with Aligning Washer0 Inch | 0 Millimeter
Bore 11.181 Inch | 30 Millimeter
bore diameter:30 mm
static load capacity:4300 kg
outside diameter:47 mm
dynamic load capacity:2100 kg
overall width:11 mm
operating temperature range:Maximum of +120 °C
thrust bearing type:Single-Direction
maximum rpm:6700 RPM
outside diameter design:Straight
cage material:Steel
separable or banded:Separable
fillet radius:0.6 mm
race type:Flat
series:511
precision rating:ABEC 1 (ISO Class Normal)
SRI3.4
hidYobi51106
LangID1
D_47
SREX0.04
C20.6
B_11
CADhttp://service.web2cad.co.jp/pcom/?Maker=NSK_RB&info=nsk_rb/roller_bearings/thrust_bearings/single_direction_tbb/with_flat_seet_asmtab.prj&varset={ORDER=51106}.{SD=30}.{D=47}.{T=11}.{SR=0.6}.{CAN=20600}.{COAN=42000}.{CA=2100}.{COA=4300}.{GRE=4300}.{OIL=6700}.{SD1=47}.{D1=32}.{SDA=40}.{DA=37}.{SRA=0.6}.{MASS=0.064}
hidTableecat_NSSDTB
Oil rpm6700
SRE3.4
mass0.064
GRS rpm4300
ra0.6
SRIX0.04
D_a37
SRIN0
C042
SREN0
D_132
Prod_Type3TB_SD_WFS
da40
DA_6.35
Z_17
yobi51106
SDM_38.5
r0.6
T_11
KBRG5111
calcUrl/BearingGuide/html/calculation.jsp
