Home > Thrust ball bearings > 51107 NTN Other Features Single Row | With Flat Seat 35x52x12mm Thrust ball bearings

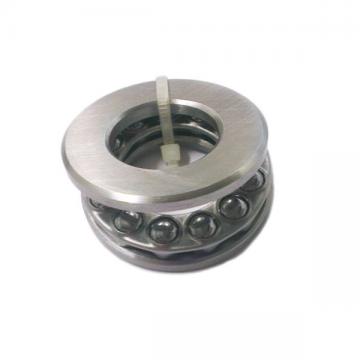

51107 NTN Other Features Single Row | With Flat Seat 35x52x12mm  Thrust ball bearings

51107 NTN Other Features Single Row | With Flat Seat 35x52x12mm Thrust ball bearings

Bearing number51107Size (mm)35x52x12BrandNTNBore Diameter (mm)35Outer Diameter (mm)52Width (mm)12d35 mmD52 mmT12 mmd152 mmr min.0.6 mmD137 mmda min.45 mmDa max.42 mmra max.0.6 mmWeight0.085 KgBasic dynamic load rating (C)20.4 kNBasic static load rating (C0)44.5 kN(Grease) Lubrication Speed3 900 r/minCategoryThrust Ball BearingBDI Inventory0.0Manufa…
Contact Us Now !

Product description

51107 NTN Other Features Single Row | With Flat Seat 35x52x12mm Thrust ball bearings

Bearing number51107
Size (mm)35x52x12
BrandNTN
Bore Diameter (mm)35
Outer Diameter (mm)52
Width (mm)12
d35 mm
D52 mm
T12 mm
d152 mm
r min.0.6 mm
D137 mm
da min.45 mm
Da max.42 mm
ra max.0.6 mm
Weight0.085 Kg
Basic dynamic load rating (C)20.4 kN
Basic static load rating (C0)44.5 kN
(Grease) Lubrication Speed3 900 r/min
CategoryThrust Ball Bearing
BDI Inventory0.0
Manufacturer NameNTN
Minimum Buy QuantityN/A
Weight / Kilogram0.078
EAN4547359305975
Product Group – BDIB00308
Rolling ElementBall Bearing
Thrust BearingYes
Single or Double DirectionSingle Direction
BandedNo
Cage MaterialSteel
Precision ClassABEC 1 | ISO P0
Component DescriptionRoller Assembly Plus Raceways
Other FeaturesSingle Row | With Flat Seat
Long Description35MM Bore 1; 37MM Bore 2; 52MM Outside Diameter; 12MM Height; Ball Bearing; Single Direction; Not Banded; Steel Cage; ABEC 1 | ISO P0 Precision
Inch – MetricMetric
Category – BDIThrust Ball Bearings
UNSPSC31171552
Harmonized Tariff Code8482.10.50.08
NounBearing
Keyword StringBall Thrust
Manufacturer URLhttp://www.ntnamerica.com
Manufacturer Item Number51107
Weight / LBS0.18739
Outside Diameter2.047 Inch | 52 Millimeter
Overall Height with Aligning Washer0 Inch | 0 Millimeter
Bore 11.378 Inch | 35 Millimeter
Height0.472 Inch | 12 Millimeter
Bore 21.457 Inch | 37 Millimeter
bore diameter:35 mm
dynamic load capacity:20400 N
outside diameter:52 mm
operating temperature range:-40 to 120 ºC
overall width:12 mm
maximum rpm:5600 rpm
thrust bearing type:Single-Direction
bearing material:High Carbon Chrome Steel
outside diameter design:Straight
cage material:Resin
separable or banded:Separable
fillet radius:0.6 mm
precision rating:ISO Class 0
series:511
static load capacity:44500 N
manufacturer product page:Click here
