Product description

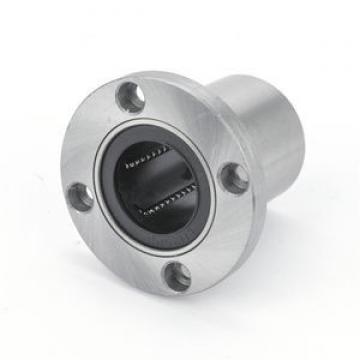

LMKM25 Samick Tolerance perpendicularity (C) 20 Linear bearings

Bearing numberLMKM25
BrandSamick
Bore Diameter (mm)25
Outer Diameter (mm)40
d25 mm
D40 mm
d15.5 mm
d29.5 mm
h5.4 mm
D162 mm
H8 mm
K50 mm
L112 mm
PCD51 mm
â„“52 Tolerance h14
Tolerance perpendicularity (C)20
Weight0.515 Kg
Basic dynamic load rating (C)1.56 kN

Cross-reference to other manufacturer’s part number

AST650 152120 Plain bearings

OD Chamfer Length (Co):2.000 , ID Chamfer Length (Ci):1.200 , Material:Cast bronze with solid lubricant inserts. , ID Chamfer Angle (B deg.):15
SL04-5020NR Cylindrical roller bearings

T2:6 mm , T1:54 mm , Basic static load rating (C0):3700 kN , D1:156 mm , Basic dynamic load rating (C):3050 kN , Weight:4.03 Kg
14138A/14277 Tapered roller bearings

Radius (min) (rs1):0.091 , Radius (min) (rs):0.138 , Material:52100 chrome steel or equiavelent , Weight (g):348.00
UKT207+H2307 Bearing units

N1:16 mm , N:22 mm , A2:30 mm , L1:78 mm , N2:37 mm
UKT209 Bearing units

A2:35 mm , Basic static load rating (C0):21.3 kN , Weight:2.5 Kg , Basic dynamic load rating (C):34.1 kN , N2:49 mm
BPP7 Bearing units

S:8.5 mm , Bolt (G):M10 , L:129 mm , N:11.5 mm , J:106 mm
22324EX Cylindrical roller bearings

Calculation factor (e):0.33 , Calculation factor (Y1):2.03 , Calculation factor (Y0):1.98 , (Oil) Lubrication Speed:2600 r/min
SL182972 Cylindrical roller bearings

Basic static load rating (C0):2650 kN , Weight:36.4 Kg , D1:438.6 mm , Basic dynamic load rating (C):1290 kN , d1:399.5 mm , S:5 mm
21322CAE4 Spherical roller bearings

Calculation factor (e):0.22 , Basic static load rating (C0):545 kN , Calculation factor (Y0):3 , (Grease) Lubrication Speed:1300 r/min , (Oil) Lubrication Speed:1700 r/min , Calculation factor (Y2):4.6
22318EANW33 Thrust roller bearings

d:90.000 mm , Width :64.000mm , H:64.000 mm , D:190.000 mm , Bore Diameter :90.000mm , Outer Diameter :190.000mm
