Home > Complex bearings > NKIB 5906 NBS 30x47x25mm C 23 mm Complex bearings

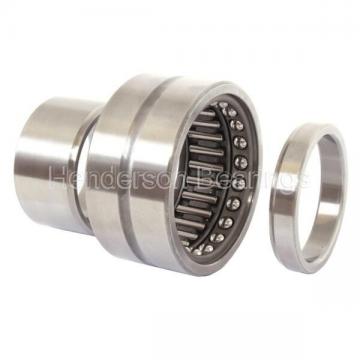

NKIB 5906 NBS 30x47x25mm  C 23 mm Complex bearings

NKIB 5906 NBS 30x47x25mm C 23 mm Complex bearings

Bearing numberNKIB 5906Size (mm)30x47x25BrandNBSBore Diameter (mm)30Outer Diameter (mm)47Width (mm)25d30 mmF35 mmD47 mmB25 mmC23 mmWeight0.151 KgDynamic load rating radial (C)23.75 kNDynamic load rating axial (C)4.513 kNStatic load rating radial (C0)33.7 kNStatic load rating axial (C0)6.935 kN Cross-reference to other manufacturer's part number EXT…
Contact Us Now !

Product description

NKIB 5906 NBS 30x47x25mm C 23 mm Complex bearings

Bearing numberNKIB 5906
Size (mm)30x47x25
BrandNBS
Bore Diameter (mm)30
Outer Diameter (mm)47
Width (mm)25
d30 mm
F35 mm
D47 mm
B25 mm
C23 mm
Weight0.151 Kg
Dynamic load rating radial (C)23.75 kN
Dynamic load rating axial (C)4.513 kN
Static load rating radial (C0)33.7 kN
Static load rating axial (C0)6.935 kN

Cross-reference to other manufacturer’s part number

EXT205+WB Bearing units

A2:55.9 mm , N:12 mm , T:6 mm , M1:19 mm , Basic dynamic load rating (C):14 kN , Weight:5.3 Kg
35SF56 Plain bearings

Weight:4.85 Kg , Basic dynamic load rating (C):585 kN , ra max.:0.6 mm , Angle:6 ° , rb max.:0.8 mm
LMEKP30 Linear bearings

Tolerance perpendicularity (C):15 , Weight:0.545 Kg , PCD:62 mm , L:68 mm , Basic dynamic load rating (C):1.56 kN , â„“:10 Tolerance h14
AST11 F15090 Plain bearings

Flange Radius (rfl):1.000 , Material:Bronze shell with PTFE / Fiber lining , ID Chamfer Length (Ci):0.300 , Flange Dia. (Dfl pm 0.5):23.000
AST090 6540 Plain bearings

Bearing Length Tolerance (B tol.) – +0 / -0.40:+0 / 0.40 , ID Chamfer Length (Ci):0.600 , Material:Wrapped bronze with formed lubrication indents. , OD Chamfer Length (Co):1.800 , ID Chamfer Angle (B deg.):45
AST20 WC12 Plain bearings

Housing Counterbore Depth (Ha):1.00 , Mounting Hole Pitch Dia. (dp):18 , Housing Counterbore Depth Tolerance (Ha tol.) – +0.2 / -0.2:+0.2 / 0.2 , Material:Carbon steel shell with POM plastic liner , Housing Counterbore Diameter, Nominal (HD):24.000 , Housing Counterbore Diameter Tolerance (HD tol.):+0.12 / 0
UKT320+H2320 Bearing units

A2:75 mm , N:59 mm , N2:115 mm , N1:48 mm
2319K Self aligning ball bearings

(Grease) Lubrication Speed:2600 r/min , (Oil) Lubrication Speed:3200 r/min , Calculation factor (Y1):1.7 , Calculation factor (Y0):1.8 , Calculation factor (e):0.37 , Basic static load rating (C0):64 kN
NMJ 3.1/4 Self aligning ball bearings

d:82.55 mm , Width :39.69mm , B:39.69 mm , D:190.5 mm , C:39.69 mm , Outer Diameter :190.5mm
1313-K+H313 Self aligning ball bearings

D1:85 mm , B2:15 mm , Weight:3 Kg , Basic static load rating (C0):22.8 kN , Basic dynamic load rating (C):48.3 kN , B1:50 mm
