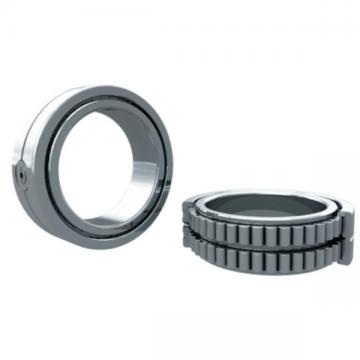

SL045012-PP INA 60x95x46mm  Noun Bearing Cylindrical roller bearings

SL045012-PP INA 60x95x46mm Noun Bearing Cylindrical roller bearings

Bearing numberSL045012-PPSize (mm)60x95x46BrandINABore Diameter (mm)60Outer Diameter (mm)95Width (mm)46d60 mmD95 mmB46 mm30 ° / Chamfer angleC45 mmC140.2 mm / Tolerance: +0.2Ca1 - 35 mm / Mounting dimension for snap ring WRE / Tolerance: -0,235 mm / Mounting dimension for snap ring WRE / Tolerance: 0.2Ca2 - 34 mm / Mounting dimension for retain…
Contact Us Now !

Product description

SL045012-PP INA 60x95x46mm Noun Bearing Cylindrical roller bearings

Bearing numberSL045012-PP
Size (mm)60x95x46
BrandINA
Bore Diameter (mm)60
Outer Diameter (mm)95
Width (mm)46
d60 mm
D95 mm
B46 mm
30 ° / Chamfer angle
C45 mm
C140.2 mm / Tolerance: +0.2
Ca1 – 35 mm / Mounting dimension for snap ring WRE / Tolerance: -0,235 mm / Mounting dimension for snap ring WRE / Tolerance: 0.2
Ca2 – 34 mm / Mounting dimension for retaining ring to DIN 471 / Tolerance: -0,234 mm / Mounting dimension for retaining ring to DIN 471 / Tolerance: 0.2
D192.4 mm / Tolerance: +0.2
d173.7 mm
d279 mm
d3104 mm / Outside diameter of snap ring WRE
m3.2 mm
rmin0.6 mm
t1 mm
X36 mm / Distance between rolling elements
m1.26 kg / Weight
Cr125000 N / Dynamic load rating (radial)
C0r201000 N / Static load rating (radial)
Cur27500 N
nG Fett1700 1/min / Limiting speed for grease lubrication
WRE95 / Designation for snap ring WRE
CategoryCylindrical Roller Bearings
BDI Inventory0.0
Manufacturer NameSCHAEFFLER GROUP
Minimum Buy QuantityN/A
Weight / Kilogram1.442
EAN4012802071498
Product Group – BDIB04144
Bore ProfileStraight
Cage MaterialNone
Precision ClassRBEC 1 | ISO P0
Number of Rows of RollersDouble Row
SeparableNo
Rolling ElementCylindrical Roller Bearing
ProfileComplete with Outer and Inner Ring
Snap RingYes
Internal ClearanceC0-Medium
RetainerNo
RelubricatableYes
Inch – MetricMetric
Other FeaturesFull Complement | 3 Rib Inner Ring | 1 Rib Outer Ring | Seals on Both Sides | Operating Temperature From -20 to 80 Deg
Long Description60MM Bore; Straight Bore Profile; 95MM Outside Diameter; 46MM Width; RBEC 1 | ISO P0; Double Row; Not Separable; Snap Ring; Relubricatable; C0-Medium Internal Clearance; No Retainer
Category – BDICylindrical Roller Bearing
UNSPSC31171547
Harmonized Tariff Code8482.50.00.00
NounBearing
Manufacturer URLhttp://www.ina.com
Manufacturer Item NumberSL045012PP
Weight / LBS3.177
Width1.811 Inch | 46 Millimeter
Outside Diameter3.74 Inch | 95 Millimeter
Bore2.362 Inch | 60 Millimeter
