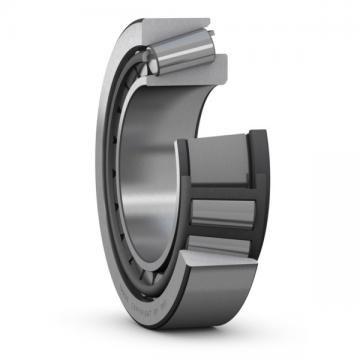

T4CB140X. PSL (Oil) Lubrication Speed 2200 r/min 140x195x29mm  Tapered roller bearings

T4CB140X. PSL (Oil) Lubrication Speed 2200 r/min 140x195x29mm Tapered roller bearings

Bearing numberT4CB140X.Size (mm)140x195x29BrandPSLBore Diameter (mm)140Outer Diameter (mm)195Width (mm)29d140 mmD195 mmT29 mmB27 mmC21 mma41 mmr min.6 mmr2 min.3 mmr3 min.0.6 mmda max150 mmDa min180 mmDa max.181 mmdb min153 mmDb min.189 mmra max.3 mmWeight2.5 KgBasic dynamic load rating (C)206 kNBasic static load rating (C0)343 kN(Grease) Lubricati…
Contact Us Now !

Product description

T4CB140X. PSL (Oil) Lubrication Speed 2200 r/min 140x195x29mm Tapered roller bearings

Bearing numberT4CB140X.
Size (mm)140x195x29
BrandPSL
Bore Diameter (mm)140
Outer Diameter (mm)195
Width (mm)29
d140 mm
D195 mm
T29 mm
B27 mm
C21 mm
a41 mm
r min.6 mm
r2 min.3 mm
r3 min.0.6 mm
da max150 mm
Da min180 mm
Da max.181 mm
db min153 mm
Db min.189 mm
ra max.3 mm
Weight2.5 Kg
Basic dynamic load rating (C)206 kN
Basic static load rating (C0)343 kN
(Grease) Lubrication Speed1700 r/min
(Oil) Lubrication Speed2200 r/min
Calculation factor (e)0.5
Calculation factor (Y)1.19

Cross-reference to other manufacturer’s part number

1640-2RS Deep groove ball bearings

C:14.2875 mm , D:50.8 mm , Basic dynamic load rating (C):1100 kN , B:14.2875 mm , Weight:0.112 Kg
3308 Angular contact ball bearings

(Grease) Lubrication Speed:4700 r/min , Basic dynamic load rating (C):61.9 kN , Basic static load rating (C0):43.4 kN , B:36.5 mm , C:36.5 mm , Weight:1.07 Kg
RW407 Tapered roller bearings

D:53 mm , B:37 mm , C:37 mm , d:29 mm
2210-K Self aligning ball bearings

r1 min.:1.1 mm , Basic dynamic load rating (C):32.8 kN , Weight:0.6 Kg , Basic static load rating (C0):11.3 kN , r2 min.:1.1 mm
51106V/HR22Q2 Thrust ball bearings

Basic dynamic load rating (C):0.835 kN , D1:31 mm , Weight:0.013 Kg , Basic static load rating (C0):0.67 kN , r3 min.:1 mm
SF1732 Angular contact ball bearings

d:85.000 mm , C:28.000 mm , B:28.000 mm , D:150.000 mm
22312EF801 Thrust roller bearings

Width :46.000mm , d:60.000 mm , H:46.000 mm , D:130.000 mm
1311 Self aligning ball bearings

Basic static load rating (C0):18 kN , (Grease) Lubrication Speed:5000 r/min , Basic dynamic load rating (C):50.7 kN , Weight:1.6 Kg
B-69 Needle roller bearings

Basic dynamic load rating (C):9.34 kN , (Grease) Lubrication Speed:4600 r/min , C:14.27 mm , D:14.288 mm , Basic static load rating (C0):13.92 kN , Weight:0.007 Kg
ER3.20.2000.400-1SPPN Thrust roller bearings

Fi:1905 mm , Hi:123 mm , He:106 mm , De:2236.8 mm , Ht:132 mm , Fe:2105 mm
