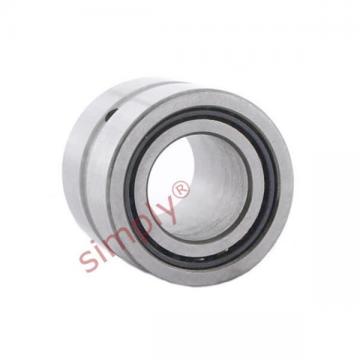

TAFI 253820 IKO Basic static load rating (C0) 37.2 kN 25x38x20mm Needle roller bearings

Bearing numberTAFI 253820Size (mm)25x38x20BrandIKOBore Diameter (mm)25Outer Diameter (mm)38Width (mm)20d25 mmFw29 mmD38 mmB20 mmC20 mmr min.0.3 mmda min.27 mmda max28 mmDa max.36 mmS0.5 mmWeight0.082 KgBasic dynamic load rating (C)21.6 kNBasic static load rating (C0)37.2 kN Cross-reference to other manufacturer's part number AST40 125115 Plain bear…

Product description

TAFI 253820 IKO Basic static load rating (C0) 37.2 kN 25x38x20mm Needle roller bearings

Bearing number	TAFI 253820
Size (mm)	25x38x20
Brand	IKO
Bore Diameter (mm)	25
Outer Diameter (mm)	38
Width (mm)	20
d	25 mm
Fw	29 mm
D	38 mm
B	20 mm
C	20 mm
r min.	0.3 mm
da min.	27 mm
da max	28 mm
Da max.	36 mm
S	0.5 mm
Weight	0.082 Kg
Basic dynamic load rating (C)	21.6 kN
Basic static load rating (C0)	37.2 kN

Cross-reference to other manufacturer’s part number

AST40 125115 Plain bearings	Bearing Length Tolerance (B tol.) – +0 / -0.40:+0 / 0.40 , ID Chamfer Angle (B deg.):45 , Material:Steel shell with PTFE / Polymer Fiber lining , OD Chamfer Length (Co):1.800 , ID Chamfer Length (Ci):0.600
29392 Thrust roller bearings	H:575 mm , D1:685 mm , S:257 mm , d1:566 mm
Y-2416 Needle roller bearings	C:25.4 mm , Fw:38.1 mm , Basic dynamic load rating (C):51 kN , D:47.625 mm , Weight:0.1 Kg
22220EA Thrust roller bearings	D:180.000 mm , H:46.000 mm , Width :46.000mm , d:100.000 mm
GLCTE25 Bearing units	Length Thru Bore:1.22 Inch \| 31 Millimeter , Cartridge Pilot Depth:0 Inch \| 0 Millimeter , Bore:0.984 Inch \| 25 Millimeter , Cartridge Pilot Diameter:0 Inch \| 0 Millimeter , Bolt Spacing:3 Inch \| 76.2 Millimeter
BT205 Bearing units	A2:24 mm , N:19 mm , N1:16 mm , S:7.5 mm , L1:62 mm , N2:32 mm
SL12 940 Cylindrical roller bearings	B:152 mm , Weight:29.9 Kg , C:152 mm , Basic static load rating (C0):2950 kN , Basic dynamic load rating (C):1180 kN
51128 Thrust ball bearings	Weight:2.05 Kg , Basic dynamic load rating (C):109 kN , Basic static load rating (C0):431 kN , (Grease) Lubrication Speed:1989 r/min
W639/2.5-2ZS Deep groove ball bearings	Reference speed:160000 r/min , Basic static load rating (C0):0.067 kN , Limiting speed:80000 r/min , Fatigue load limit (Pu):0.003 , Calculation factor (f0):6.6
24164RHA Spherical roller bearings	Y1:1.70 , Y2:2.52 , ra(max):4 , e:0.40 , Y0:1.66 , (Refer.)Mass(kg):199
