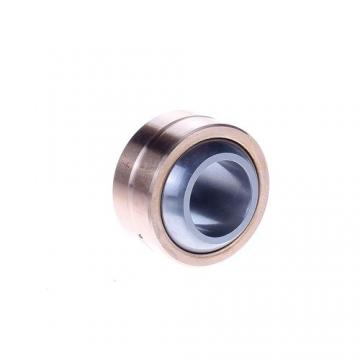

TSF 18 C ISB 18x35x23mm  Angle 15 ° Plain bearings

TSF 18 C ISB 18x35x23mm Angle 15 ° Plain bearings

Bearing numberTSF 18 CSize (mm)18x35x23BrandISBBore Diameter (mm)18Outer Diameter (mm)35Width (mm)23d18 mmD35 mmB23 mmd121.8 mmd244 mmd425 mmdk31.75 mmh171 mml3 min.27 mml4 max.94 mml510 mml7 min.25 mmr min.0.3 mmC117.5 mmW27 mmThread (G)M18x1.5Angle15 °d531 r/minWeight0.32 KgBasic dynamic load rating (C)29 kN Cross-reference to other manufactu…
Contact Us Now !

Product description

TSF 18 C ISB 18x35x23mm Angle 15 ° Plain bearings

Bearing numberTSF 18 C
Size (mm)18x35x23
BrandISB
Bore Diameter (mm)18
Outer Diameter (mm)35
Width (mm)23
d18 mm
D35 mm
B23 mm
d121.8 mm
d244 mm
d425 mm
dk31.75 mm
h171 mm
l3 min.27 mm
l4 max.94 mm
l510 mm
l7 min.25 mm
r min.0.3 mm
C117.5 mm
W27 mm
Thread (G)M18x1.5
Angle15 °
d531 r/min
Weight0.32 Kg
Basic dynamic load rating (C)29 kN

Cross-reference to other manufacturer’s part number

TUP2 80.60 Plain bearings

θ:9.5 mm , L:60 mm , f1:1.4 mm , f2:0.7 mm
SL181848-E Cylindrical roller bearings

Outside Diameter:11.811 Inch | 300 Millimeter , Bore:9.449 Inch | 240 Millimeter , Width:1.102 Inch | 28 Millimeter , Weight / LBS:10.982 , Manufacturer Item Number:SL181848E
AST20 19050 Plain bearings

ID Chamfer Length (Ci):0.800 , Bearing Length Tolerance (B tol.) – +0 / -0.40:+0 / 0.40 , OD Chamfer Length (Co):1.800 , Material:Carbon steel shell with POM plastic liner , ID Chamfer Angle (B deg.):45 , Lube Hole Dia. (dl):9.500
YAR 205-100-2FW/VA228 Deep groove ball bearings

Hexagonal key size for grub screw N:3.175 mm , Grub (set) screw G2:1/4-28 UNF , Limiting temperature T max.:350 °C , Recommended tightening torque for grub screw:4 N·m
YRT 180 Thrust roller bearings

Static load rating radial (C0):200 kN , Static load rating axial (C0):710 kN , Dynamic load rating axial (C):118 kN , Dynamic load rating radial (C):69.5 kN
SCE2110 Needle roller bearings

Weight / LBS:0.082 , Width:0.625 Inch | 15.875 Millimeter , Outside Diameter:1.625 Inch | 41.275 Millimeter , Bore:1.313 Inch | 33.35 Millimeter
16034 Deep groove ball bearings

SBRG:0 , KBRG:6104 , r:1.5 , calcUrl:/BearingGuide/html/calculation.jsp , DI_:194.362 , SDM_:215
LMF6LUU Linear bearings

PCD:20 mm , Weight:0.031 Kg , Tolerance perpendicularity (C):15 , Basic dynamic load rating (C):0.32 kN
K81118-TV Thrust roller bearings

:GS81118 / Allocated housing locating washer , Ca:141000 N / Dynamic load rating (axial) , nG:2750 1/min / Limiting speed , nB:1070 1/min / Reference speed , Cua:40000 N / Fatigue limit load , C0a:465000 N / Static load rating (axial)
2304K Self aligning ball bearings

Calculation factor (Y1):1.29 , Basic static load rating (C0):4.70 kN , (Grease) Lubrication Speed:11000 r/min , Calculation factor (e):0.49 , (Oil) Lubrication Speed:15000 r/min , Calculation factor (Y0):1.35
