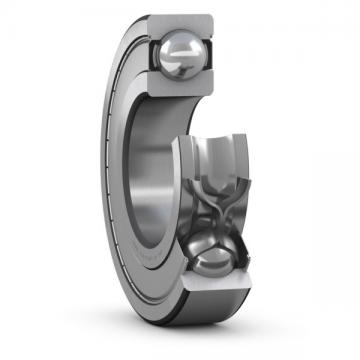

W627/4-2Z SKF Basic static load rating (C0) 0.053 kN 4x7x2.5mm Deep groove ball bearings

Bearing numberW627/4-2ZSize (mm)4x7x2.5BrandSKFBore Diameter (mm)4Outer Diameter (mm)7Width (mm)2.5d4 mmD7 mmB2.5 mmC2.5 mmd14.8 mmd2â€“ mmr1 min.4.6 mmr2 min.4.6 mmD16.5 mmD20.1 mmda min.4.7 mmDa max.6.5 mmra max.0.1 mmWeight0.0003 KgBasic dynamic load rating (C)0.143 kNBasic static load rating (C0)0.053 kNFatigue load limit (Pu)0.002Reference spe…

Product description

W627/4-2Z SKF Basic static load rating (C0) 0.053 kN 4x7x2.5mm Deep groove ball bearings

Bearing number	W627/4-2Z
Size (mm)	4x7x2.5
Brand	SKF
Bore Diameter (mm)	4
Outer Diameter (mm)	7
Width (mm)	2.5
d	4 mm
D	7 mm
B	2.5 mm
C	2.5 mm
d1	4.8 mm
d2	â€“ mm
r1 min.	4.6 mm
r2 min.	4.6 mm
D1	6.5 mm
D2	0.1 mm
da min.	4.7 mm
Da max.	6.5 mm
ra max.	0.1 mm
Weight	0.0003 Kg
Basic dynamic load rating (C)	0.143 kN
Basic static load rating (C0)	0.053 kN
Fatigue load limit (Pu)	0.002
Reference speed	150000 r/min
Limiting speed	75000 r/min
Calculation factor (f0)	7.6

Cross-reference to other manufacturer’s part number

LMFP8UU Linear bearings	Weight:0.04 Kg , Basic dynamic load rating (C):0.26 kN , Tolerance perpendicularity (C):12 , â„“:5 Tolerance h14 , PCD:24 mm
NU 1013 ECP Thrust ball bearings	Fatigue load limit Pu:9.8 kN , Basic static load rating C0:81.5 kN , Calculation factor kr:0.1 , Limiting value e:0.2 , Axial load factor Y:0.6 , Mass bearing:0.45 kg
EXFLZ201 Bearing units	A2:45.5 mm , Thread (G):R1/8" , Weight:0.6 Kg , Basic dynamic load rating (C):12.8 kN
2218-K Self aligning ball bearings	r1 min.:2 mm , C:40 mm , Basic dynamic load rating (C):70 kN , Basic static load rating (C0):28.5 kN , r2 min.:2 mm , Weight:3.3 Kg
R92Z-6 Tapered roller bearings	T:40 mm , D:152.298 mm , B:39 mm , d:92 mm
USFEE212 Bearing units	A2:55.8 mm , Weight:4.3 Kg , N:14 mm , Thread (G):R1/8" , Basic dynamic load rating (C):52.5 kN , L:195 mm
AST50 16FIB16 Plain bearings	Material:Carbon steel shell with PTFE / Fiber lining , ID Chamfer Length (Ci):0.019 , Flange Dia. (Dfl pm 0.5):1.370 , ID Chamfer Angle (B deg.):30 , Flange Thickness (Sfl):0.064 , Flange Radius (rfl):0.040
YB 98 Needle roller bearings	C:12.7 mm , Weight:0.0101 Kg , Basic static load rating (C0):20.4 kN , Basic dynamic load rating (C):11.6 kN
24168RK30 Spherical roller bearings	(Oil) Lubrication Speed:580 r/min , (Grease) Lubrication Speed:440 r/min , Basic static load rating (C0):7620 kN , Calculation factor (Y0):1.62 , Calculation factor (e):0.41 , Calculation factor (Y1):1.66
T-HH932132/HH932110 Tapered roller bearings	D:304.8 mm , T:88.9 mm , C:57.15 mm , d:127 mm , B:82.55 mm
