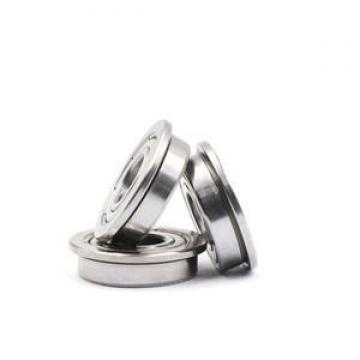

W688ZZ KOYO Da max. 14.4 mm 8x16x5mm  Deep groove ball bearings

W688ZZ KOYO Da max. 14.4 mm 8x16x5mm Deep groove ball bearings

Bearing numberW688ZZSize (mm)8x16x5BrandKOYOBore Diameter (mm)8Outer Diameter (mm)16Width (mm)5d8 mmD16 mmB5 mmC5 mmr min.0.2 mmr1 min.0.2 mmda min.9.6 mmDa max.14.4 mmra max.0.2 mmWeight0.0032 KgBasic dynamic load rating (C)1.6 kNBasic static load rating (C0)0.71 kN(Grease) Lubrication Speed42000 r/min Cross-reference to other manufacturer's part …
Contact Us Now !

Product description

W688ZZ KOYO Da max. 14.4 mm 8x16x5mm Deep groove ball bearings

Bearing numberW688ZZ
Size (mm)8x16x5
BrandKOYO
Bore Diameter (mm)8
Outer Diameter (mm)16
Width (mm)5
d8 mm
D16 mm
B5 mm
C5 mm
r min.0.2 mm
r1 min.0.2 mm
da min.9.6 mm
Da max.14.4 mm
ra max.0.2 mm
Weight0.0032 Kg
Basic dynamic load rating (C)1.6 kN
Basic static load rating (C0)0.71 kN
(Grease) Lubrication Speed42000 r/min

Cross-reference to other manufacturer’s part number

SF4651 Angular contact ball bearings

C:26.000 mm , D:290.000 mm , Width :26.000mm , B:26.000 mm , Outer Diameter :290.000mm , d:230.000 mm
UKC328 Bearing units

H:360 mm , Basic dynamic load rating (C):253 kN , Basic static load rating (C0):246 kN , Weight:52.9 Kg
SQGL12 Plain bearings

S:13 mm , Weight:0.104 Kg , Angle:15 ° , Thread (G):M12
2318-K+H2318 Self aligning ball bearings

Basic static load rating (C0):58 kN , Basic dynamic load rating (C):117 kN , Weight:9.9 Kg , D1:120 mm , B2:19 mm
YRT 850 Thrust roller bearings

Static load rating radial (C0):1730 kN , Static load rating axial (C0):8650 kN , Dynamic load rating axial (C):1000 kN , Dynamic load rating radial (C):455 kN
YAR 207-104-2FW/VA201 Deep groove ball bearings

Hexagonal key size for grub screw N:3.969 mm , Grub (set) screw G2:5/16-24 UNF , Recommended tightening torque for grub screw:6.5 N·m , Limiting temperature T max.:250 °C
AST11 2515 Plain bearings

ID Chamfer Length (Ci):0.500 , ID Chamfer Angle (B deg.):30 , Material:Bronze shell with PTFE / Fiber lining , Bearing Length Tolerance (B tol.) – +0 / -0.30:+0 / 0.30 , OD Chamfer Length (Co):0.700 , Bearing Length, Nominal (B):15.000
LBE 30 UU AJ Linear bearings

Weight (g):305.00 , Adjustable Open Gap (h):2.000 , Groove Dia. (D1):44.000 , Material:52100 chrome steel. or equivalent
NAX 6040 Complex bearings

Dynamic load rating axial (C):41.4 kN , Static load rating axial (C0):89.7 kN , Static load rating radial (C0):103 kN , Dynamic load rating radial (C):47.5 kN
UKPAE211H Bearing units

Basic dynamic load rating (C):43.55 kN , Weight:3.3 Kg , Thread (G):R1/8" , Thread (N1):M16
