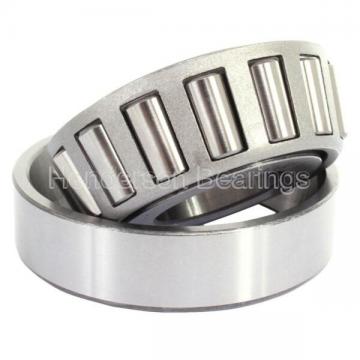

02476/02420 KOYO 31.75×68.262×22.225mm  rb max. 1.6 mm Tapered roller bearings

02476/02420 KOYO 31.75×68.262×22.225mm rb max. 1.6 mm Tapered roller bearings

Bearing number02476/02420Size (mm)31.75x68.262x22.225BrandKOYOBore Diameter (mm)31.75Outer Diameter (mm)68.262Width (mm)22.225d31.75 mmD68.262 mmT22.225 mmB22.225 mmC17.462 mma17.1 mmr min.0.8 mmr1 min.1.6 mmr2 min.1.6 mmda min.39 mmDa59 mmdb min38.5 mmdb38.5 mmra max.0.8 mmrb max.1.6 mmda39 mmDb63 mmWeight0.376 KgBasic dynamic load rating (C)51 kN…
Contact Us Now !

Product description

02476/02420 KOYO 31.75×68.262×22.225mm rb max. 1.6 mm Tapered roller bearings

Bearing number02476/02420
Size (mm)31.75×68.262×22.225
BrandKOYO
Bore Diameter (mm)31.75
Outer Diameter (mm)68.262
Width (mm)22.225
d31.75 mm
D68.262 mm
T22.225 mm
B22.225 mm
C17.462 mm
a17.1 mm
r min.0.8 mm
r1 min.1.6 mm
r2 min.1.6 mm
da min.39 mm
Da59 mm
db min38.5 mm
db38.5 mm
ra max.0.8 mm
rb max.1.6 mm
da39 mm
Db63 mm
Weight0.376 Kg
Basic dynamic load rating (C)51 kN
Basic static load rating (C0)61.1 kN
(Grease) Lubrication Speed6000 r/min
(Oil) Lubrication Speed8000 r/min
Calculation factor (e)0.42
Calculation factor (Y0)0.79

Cross-reference to other manufacturer’s part number

W-3217-B Thrust roller bearings

E:149.2 mm , H:238.1 mm , T1:12.7 mm , D1:265.94 mm , d1:127.51 mm , r max:3.6 mm
UKC309H Bearing units

Thread (G):M6x1 , Basic dynamic load rating (C):53 kN , W:3.5 mm , H:130 mm , Weight:3.1 Kg
NP548549/NP419272 Tapered roller bearings

d:22.225 mm , Width :14.1mm , T:14.1 mm , D:50.81 mm
32SFH56 Plain bearings

d:82.55 mm , Width :66.68mm , C:66.68 mm , d1:128.02 mm , D:139.7 mm , B1:82.93 mm
X32014X/Y32014X Tapered roller bearings

Basic dynamic load rating (C1):104 kN , Factor (K):1.34 , Calculation factor (e):0.43 , Basic dynamic load rating (C90):27 , Basic dynamic load rating (Ca90):20.1 , Factor (Cg):0.0303
BA 166 Z Needle roller bearings

D:31.75 mm , C:9.52 mm , Basic dynamic load rating (C):6.01 kN , Basic static load rating (C0):8.02 kN , Fw:25.4 mm , Weight:0.0131 Kg
AST50 32IB24 Plain bearings

Bearing Length Tolerance (B tol.) – +.010 / -0.010:+.010 / 0.010 , OD Chamfer Length (Co):0.072 , Material:Carbon steel shell with PTFE / Fiber lining , ID Chamfer Angle (B deg.):30 , ID Chamfer Length (Ci):0.031
23332VS1 Thrust roller bearings

Product Group – BDI:B04311 , Manufacturer Name:NTN , Minimum Buy Quantity:N/A , Weight / Kilogram:38.6
EXT214 Bearing units

J2:151 mm , Thread (G):M10x1 , J1:26 mm , Basic dynamic load rating (C):62 kN , Weight:7.4 Kg
XLRJ7.1/2 Cylindrical roller bearings

Basic dynamic load rating (C):200 kN , (Grease) Lubrication Speed:1100 r/min , Weight:4.31 Kg , Basic static load rating (C0):327 kN
