Home > Thrust roller bearings > 29336-E1 FAG m 18.4 kg / Weight 180x300x73mm Thrust roller bearings

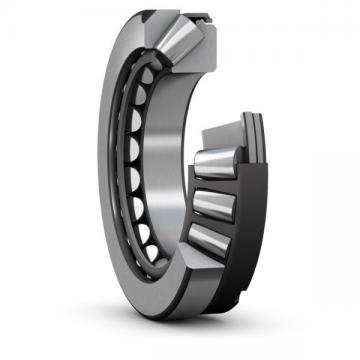

29336-E1 FAG m 18.4 kg / Weight 180x300x73mm  Thrust roller bearings

29336-E1 FAG m 18.4 kg / Weight 180x300x73mm Thrust roller bearings

Bearing number29336-E1Size (mm)180x300x73BrandFAGBore Diameter (mm)180Outer Diameter (mm)300Width (mm)73d180 mmD300 mmT73 mm30 °A103 mmD1227 mmDa max263 mmDb min304 mmd1274.5 mmda min235 mmdb max195 mmdb1 max190 mmra max2.5 mmrmin3 mmT135.5 mmT346 mmT564.5 mmm18.4 kg / WeightCa1460000 N / Dynamic load rating (axial)C0a4300000 N / Static load ra…
Contact Us Now !

Product description

29336-E1 FAG m 18.4 kg / Weight 180x300x73mm Thrust roller bearings

Bearing number29336-E1
Size (mm)180x300x73
BrandFAG
Bore Diameter (mm)180
Outer Diameter (mm)300
Width (mm)73
d180 mm
D300 mm
T73 mm
30 °
A103 mm
D1227 mm
Da max263 mm
Db min304 mm
d1274.5 mm
da min235 mm
db max195 mm
db1 max190 mm
ra max2.5 mm
rmin3 mm
T135.5 mm
T346 mm
T564.5 mm
m18.4 kg / Weight
Ca1460000 N / Dynamic load rating (axial)
C0a4300000 N / Static load rating (axial)
nG2230 1/min / Limiting speed
nB1190 1/min / Reference speed
Cua520000 N / Fatigue limit load. axial

Cross-reference to other manufacturer’s part number

AXN4075 Complex bearings

Dynamic load rating axial (C):29.8 kN , Static load rating axial (C0):128 kN , Dynamic load rating radial (C):28 kN , Static load rating radial (C0):52.5 kN , (Grease) Lubrication Speed:1100 r/min
LBB 12 UU Linear bearings

Groove-to-groove length (C1):1.166 , Material:52100 chrome steel. or equivalent , Weight (g):80.00 , Groove Dia. (D1):1.194 , Groove Width (C2):0.056
BS2-2212-2CS/VT143 Spherical roller bearings

Calculation factor (e):0.24 , Calculation factor (Y1):2.8 , Fatigue load limit (Pu):18.6 , Limiting speed:1600 r/min , Basic static load rating (C0):166 kN , Calculation factor (Y0):2.8
1309-K Self aligning ball bearings

r2 min.:1.5 mm , Weight:0.99 Kg , Basic dynamic load rating (C):38.7 kN , r1 min.:1.5 mm , Basic static load rating (C0):13.4 kN
20211 KC Spherical roller bearings

Basic static load rating (C0):85 kN , B:21 mm , Weight:0.78 Kg , (Grease) Lubrication Speed:2500 r/min , Basic dynamic load rating (C):73.5 kN , C:21 mm
T30620 Thrust roller bearings

Basic static load rating (C0):11400000 kN , R:3.3 mm , Basic dynamic load rating (Ca90):540000 , r:3.3 mm , Weight:45.6 Kg , T:47.625 mm
SL182952 Cylindrical roller bearings

S:5 mm , Basic static load rating (C0):1470 kN , Weight:18.5 Kg , Basic dynamic load rating (C):790 kN
VLU 20 0844 Thrust ball bearings

Static load rating radial (C0):224 kN , Dynamic load rating axial (C):222 kN , Weight:48 Kg , Li:762 mm , DaZT:946 mm , Dynamic load rating radial (C):145 kN
K 81160-MB Thrust roller bearings

Bore Diameter :300mm , Outer Diameter :380mm , D:380 mm , d:300 mm , Width :25mm
51164X Thrust ball bearings

r:2 , calcUrl:/BearingGuide/html/calculation.jsp , KBRG:511 , T_:63
