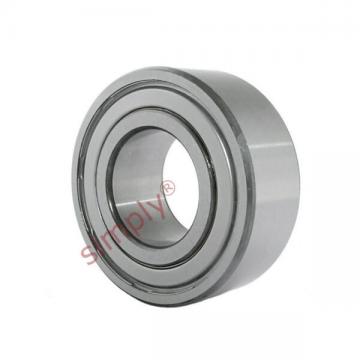

3309-DA FAG 45x100x39.7mm  m 1.55 kg / Weight Angular contact ball bearings

3309-DA FAG 45x100x39.7mm m 1.55 kg / Weight Angular contact ball bearings

Bearing number3309-DASize (mm)45x100x39.7BrandFAGBore Diameter (mm)45Outer Diameter (mm)100Width (mm)39.7d45 mmD100 mmB39.7 mma93 mmD186.7 mmDa max91 mmd178.6 mmda min54 mmra max1.5 mmrmin1.5 mmα45 ° / Anglem1.55 kg / WeightCr71000 N / Dynamic load rating (radial)C0r64000 N / Static load rating (radial)nG7500 1/min / Limiting speednB5800 …
Contact Us Now !

Product description

3309-DA FAG 45x100x39.7mm m 1.55 kg / Weight Angular contact ball bearings

Bearing number3309-DA
Size (mm)45x100x39.7
BrandFAG
Bore Diameter (mm)45
Outer Diameter (mm)100
Width (mm)39.7
d45 mm
D100 mm
B39.7 mm
a93 mm
D186.7 mm
Da max91 mm
d178.6 mm
da min54 mm
ra max1.5 mm
rmin1.5 mm
α45 ° / Angle
m1.55 kg / Weight
Cr71000 N / Dynamic load rating (radial)
C0r64000 N / Static load rating (radial)
nG7500 1/min / Limiting speed
nB5800 1/min / Reference speed
Cur3400 N / Fatigue limit load. radial
