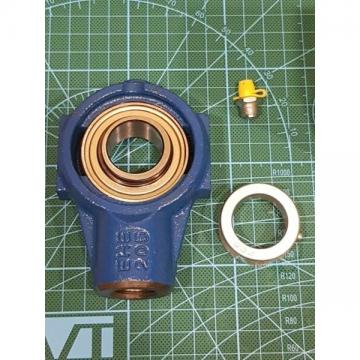

ESEHE205 SNR  Basic dynamic load rating (C) 14 kN Bearing units

ESEHE205 SNR Basic dynamic load rating (C) 14 kN Bearing units

A235 mmB21.4 mmA513.9 mmd137.4 mmGR1/8" L164 mmL338 mms124.2 mmS7.5 mmSW3 mmC14 kNC07.88 kNT min.-20 °CT max.100 °CRecommended tightening torque for set screw5.5 NmDesignation of housingEHE205- Designation of bearingES205G2 Bearing numberESEHE205BrandSNRBore Diameter (mm)25d25 mmL438 mms7.5 mmA28 mmA135 mmB130.9 mmD238.1 mmE22 mmG1M20 mmH64 mmH29…
Contact Us Now !

Product description

ESEHE205 SNR Basic dynamic load rating (C) 14 kN Bearing units

A235 mm
B21.4 mm
A513.9 mm
d137.4 mm
GR1/8″
L164 mm
L338 mm
s124.2 mm
S7.5 mm
SW3 mm
C14 kN
C07.88 kN
T min.-20 °C
T max.100 °C
Recommended tightening torque for set screw5.5 Nm
Designation of housingEHE205-
Designation of bearingES205G2
Bearing numberESEHE205
BrandSNR
Bore Diameter (mm)25
d25 mm
L438 mm
s7.5 mm
A28 mm
A135 mm
B130.9 mm
D238.1 mm
E22 mm
G1M20 mm
H64 mm
H299 mm
L70 mm
Thread (G)R1/8"
Weight1.1 Kg
Basic dynamic load rating (C)14 kN
