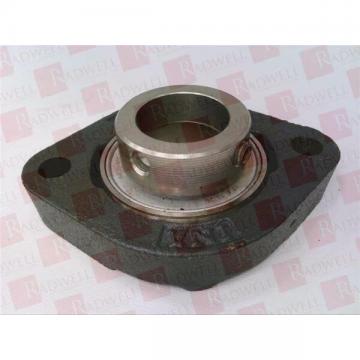

FLCTE30 INA Bolt Spacing 3.563 Inch | 90.5 Millimeter  Bearing units

FLCTE30 INA Bolt Spacing 3.563 Inch | 90.5 Millimeter Bearing units

CategoryFlange Block BearingsBDI Inventory3.0Manufacturer NameSCHAEFFLER GROUPMinimum Buy QuantityN/AWeight / Kilogram0.76EAN4012802792027Product Group - BDIM06110Number of Mounting Holes2Mounting MethodEccentric CollarHousing Style2 Bolt Flange BlockRolling ElementBall BearingHousing MaterialCast IronExpansion / Non-expansionNon-expansionMounting …
Contact Us Now !

Product description

FLCTE30 INA Bolt Spacing 3.563 Inch | 90.5 Millimeter Bearing units

CategoryFlange Block Bearings
BDI Inventory3.0
Manufacturer NameSCHAEFFLER GROUP
Minimum Buy QuantityN/A
Weight / Kilogram0.76
EAN4012802792027
Product Group – BDIM06110
Number of Mounting Holes2
Mounting MethodEccentric Collar
Housing Style2 Bolt Flange Block
Rolling ElementBall Bearing
Housing MaterialCast Iron
Expansion / Non-expansionNon-expansion
Mounting Bolts11.5 Millimeter
RelubricatableNo
Insert Part NumberRAE30NPPB
SealsDouble Lip Contact
Housing Configuration1 Piece Solid
Pilot ConfigurationNo Pilot
Inch – MetricMetric
Long Description2 Bolt Flange Block; 30MM Bore; 90.5MM Bolt Circle; 90.5MM Bolt Spacing; 1 Piece Solid; Eccentric Collar Mount; Cast Iron; Ball Bearing; 35.7MM Length Thru Bore; No Relubricatable; Double Lip Contact Seals
Other FeaturesSingle Row | Small Center Bolt | With Set Screw
Category – BDIFlange Block
UNSPSC31171501
Harmonized Tariff Code8483.20.40.40
NounBearing
Keyword StringFlanged
Manufacturer URLhttp://www.ina.com
Manufacturer Item NumberFLCTE30
Weight / LBS1.676
Cartridge Pilot Depth0 Inch | 0 Millimeter
Nominal Bolt Circle Diameter Round3.6 Inch | 90.5 Millimeter
Bolt Spacing3.563 Inch | 90.5 Millimeter
Cartridge Pilot Diameter0 Inch | 0 Millimeter
Bore1.181 Inch | 30 Millimeter
Length Thru Bore1.406 Inch | 35.7 Millimeter
Bearing numberFLCTE30
BrandINA
Bore Diameter (mm)30
d30 mm
U38.1 mm
d344 mm
A120.5 mm
B135.8 mm
H112.5 mm
J90.5 mm
L84 mm
N11.5 mm
A211.4 mm
Weight0.76 Kg
Basic dynamic load rating (C)19.5 kN

Cross-reference to other manufacturer’s part number

TAF 657835 Needle roller bearings

Da max.:74 mm , Basic dynamic load rating (C):67 kN , Weight:0.315 Kg , Basic static load rating (C0):164 kN
K.81107LPB Thrust roller bearings

Weight:0.025 Kg , Basic dynamic load rating (C):34.8 kN , Eb:49 mm , Basic static load rating (C0):101 kN
16038 Deep groove ball bearings

D:290.000 mm , B:31.000 mm , d:190.000 mm , C:31.000 mm
1213K+H213 Self aligning ball bearings

d:60 mm , B:40 mm , C:23 mm , D:120 mm
1218K Self aligning ball bearings

D:160 mm , B:30 mm , d:90 mm , Width :30mm , Outer Diameter :160mm , C:30 mm
2207 KTN9 Self aligning ball bearings

Basic dynamic load rating (C):30.09 kN , Basic static load rating (C0):8.62 kN , Weight:0.4 Kg , (Grease) Lubrication Speed:9180 r/min
05075X/05185-S Tapered roller bearings

T:14.381 mm , D:47 mm , C:11.112 mm , r:1.5 mm , B:14.381 mm , R:1.5 mm
ESPE211 Bearing units

Basic dynamic load rating (C):43.55 kN , Thread (G):R1/8" , N1:30 mm , Weight:3.2 Kg
TA 1520 Z Needle roller bearings

Basic dynamic load rating (C):12.7 kN , C:20 mm , D:22 mm , Weight:0.021 Kg , Basic static load rating (C0):17.6 kN
160TP166 Thrust roller bearings

T1:31.75 mm , d1:409.6 mm , r max:6.4 mm , E:433.4 mm , H:633.4 mm , D1:657.2 mm
