INA NUKRE35 - Leader Industrial Manufacture

✖

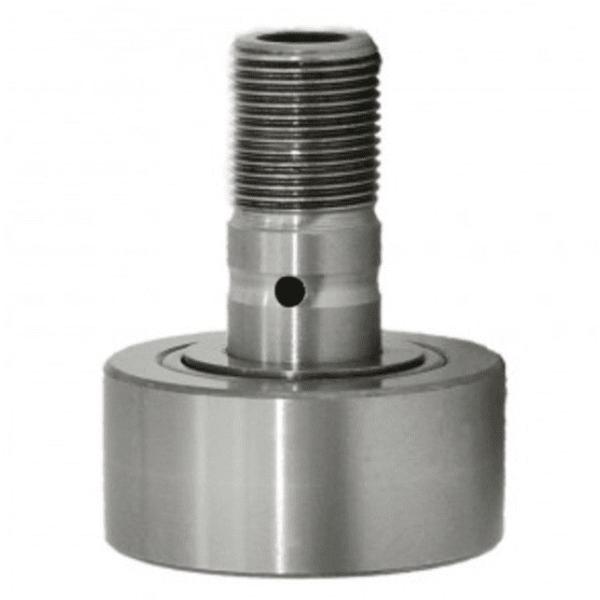

INA NUKRE35 image

Customers who bought this item also bought Roller Bearings

Bore Profile:Tapered
Cage Material:Steel
Enclosure:Open
Number of Rows of Rollers:Double Row
Relubricatable:Yes
Withdrawal Sleeve:AHX2316 (Specify bore)
Withdrawal Nut:KM18
Inch - Metric:Metric
Long Description:80MM Tapered Bore; 170MM Outside Diameter; 58MM Width; C3-Loose Clearance; Adapter Mount; Double Row of Spherical Roller Bearings; Steel Cage Material; Open Enclosure; Relubricatable; Adapter Part Num
Other Features:Order adapter or withdrawal sleeve or nut separately. Others may be available
UNSPSC:31171510
Harmonized Tariff Code:84823080
Noun:Bearing
Keyword String:Spherical
Weight / LBS:13.77
B:2.283 Inch | 58 Millimeter
d:3.15 Inch | 80 Millimeter
D:6.693 Inch | 170 Millimeter
Adapter Part Number:SNW116 H2316 HA2316 HE2316 (Specify Bore) Inch | H2316 (Specify bore) Millimeter
bore diameter::80 mm
maximum rpm::4000 RPM
outside diameter::170 mm
operating temperature range::Maximum of +390 °F
overall width::58 mm
cage material::Steel
bore type::Tapered 1:12
bearing material::Steel
outer ring type::Not Split
cage type::Inner Ring Guided
internal clearance::C3
precision rating::Not Rated
closure type::Open
finish/coating::Uncoated
lubrication hole type::Lubrication Groove & Hole
outer ring width::58 mm
dynamic load capacity::490 kN
fillet radius::2 mm
static load capacity::540 kN
series::223
