NTN 7002HVDUJ84 - Leader Industrial Manufacture

✖

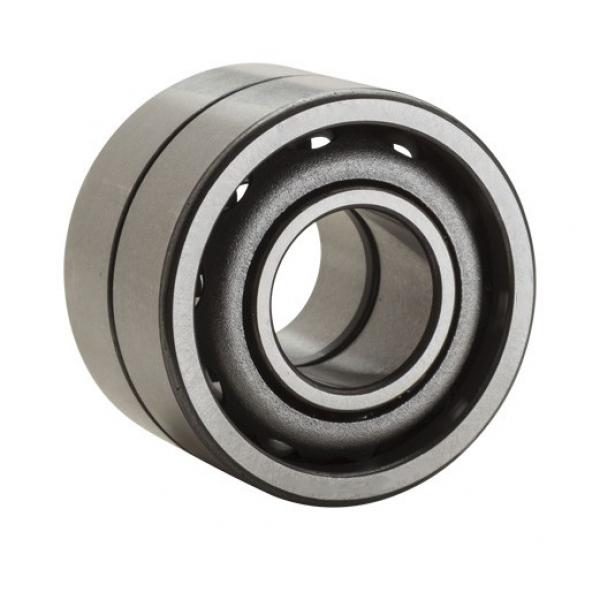

NTN 7002HVDUJ84 image

NTN 7002HVDUJ84 Characteristics

Number of Rows of Balls:Double Row
Precision Class:ABEC 1 | ISO P0
Maximum Capacity / Filling Slot:Yes
Snap Ring:No
Cage Material:Steel
Contact Angle:32 Degree
Internal Clearance:C0-Medium
Number of Bearings:1 (Single)
Inch - Metric:Metric
Long Description:25MM Bore; 62MM Outside Diameter; 25.4MM Width; Open; No Flush Ground; Ball Bearing; Double Row of Balls; ABEC 1 | ISO P0; Yes Filling Slot; No Snap Ring; C0-Medium; Steel Cage; 32 Degree; 1 (Single)
UNSPSC:31171531
Harmonized Tariff Code:8482.10.50.28
Noun:Bearing
Keyword String:Angular Contact
Manufacturer Item Number:3305
Weight / LBS:0.814
D:2.441 Inch | 62 Millimeter
d:0.984 Inch | 25 Millimeter
B:1 Inch | 25.4 Millimeter
bore diameter::25 mm
radial static load capacity::26600 N
outside diameter::62 mm
operating temperature range::-40 to 120 ºC
overall width::1.0000 in
cage material::Steel
contact angle::32 °
outer ring width::25.4 mm
row type & fill slot::Double-Row Non-Fill Slot
maximum rpm::8900 RPM
internal clearance::C0
finish/coating::Uncoated
bore type::Round
precision rating::Class 0
closure type::Open
fillet radius::1.1 mm
snap ring included::Without Snap Ring
series::33
bearing material::High Carbon Chrome Steel
weight::0.368 kg
radial dynamic load capacity::27300 N
