NTN 7201HG1DUJ74 - Leader Industrial Manufacture

✖

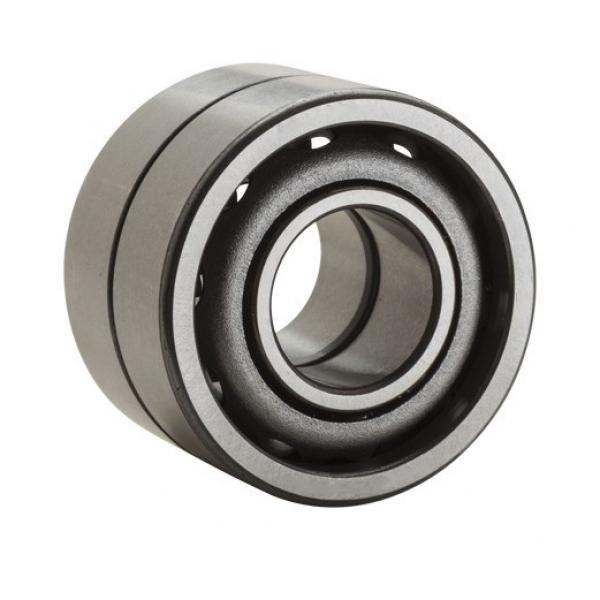

NTN 7201HG1DUJ74 image

NTN 7201HG1DUJ74 Characteristics

Number of Rows of Balls:Double Row
Precision Class:ABEC 1 | ISO P0
Maximum Capacity / Filling Slot:No
Snap Ring:Yes
Cage Material:Steel
Contact Angle:30 Degree
Internal Clearance:C3-Loose
Number of Bearings:1 (Single)
Inch - Metric:Metric
Long Description:50MM Bore; 110MM Outside Diameter; 44.4MM Width; Open; No Flush Ground; Ball Bearing; Double Row of Balls; ABEC 1 | ISO P0; No Filling Slot; Yes Snap Ring; C3-Loose; Steel Cage; 30 Degree; 1 (Single)
Other Features:With Snap Ring
UNSPSC:31171531
Harmonized Tariff Code:8482.10.50.28
Noun:Bearing
Keyword String:Angular Contact
Manufacturer Item Number:3310 ENR/C3
Weight / LBS:4.0697
D:4.331 Inch | 110 Millimeter
d:1.969 Inch | 50 Millimeter
B:1.748 Inch | 44.4 Millimeter
bore diameter::50 mm
radial static load capacity::64 kN
outside diameter::110 mm
cage material::Metal
overall width::1.7500 in
outer ring width::44.4 mm
contact angle::30 °
maximum rpm::6000 RPM
row type & fill slot::Double-Row Non-Fill Slot
finish/coating::Uncoated
internal clearance::C3
precision rating::Not Rated
closure type::Open
fillet radius::2 mm
radial dynamic load capacity::90 kN
series::33
