Home > Needle roller bearings > TLA 3020 UU IKO 30x37x20mm Weight 0.039 Kg Needle roller bearings

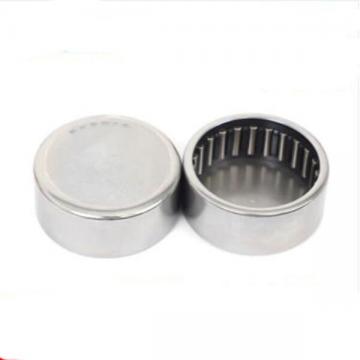

TLA 3020 UU IKO 30x37x20mm  Weight 0.039 Kg Needle roller bearings

TLA 3020 UU IKO 30x37x20mm Weight 0.039 Kg Needle roller bearings

Bearing numberTLA 3020 UUSize (mm)30x37x20BrandIKOBore Diameter (mm)30Outer Diameter (mm)37Width (mm)20Fw30 mmD37 mmC20 mmWeight0.039 KgBasic dynamic load rating (C)14.1 kNBasic static load rating (C0)24.5 kN Cross-reference to other manufacturer's part number SI30C Plain bearingsw:36 Tolerance h14 , C1 max:20 mm , Angle:6 ° , Weight:1.05 Kg , …
Contact Us Now !

Product description

TLA 3020 UU IKO 30x37x20mm Weight 0.039 Kg Needle roller bearings

Bearing numberTLA 3020 UU
Size (mm)30x37x20
BrandIKO
Bore Diameter (mm)30
Outer Diameter (mm)37
Width (mm)20
Fw30 mm
D37 mm
C20 mm
Weight0.039 Kg
Basic dynamic load rating (C)14.1 kN
Basic static load rating (C0)24.5 kN

Cross-reference to other manufacturer’s part number

SI30C Plain bearings

w:36 Tolerance h14 , C1 max:20 mm , Angle:6 ° , Weight:1.05 Kg , Thread (G):M30x2 Tolerance 6H , Basic dynamic load rating (C):65.5 kN
1206EKTN9 Self aligning ball bearings

Calculation factor (kr):0.04 , Calculation factor (e):0.25 , Calculation factor (Y0):2.5 , Calculation factor (Y1):2.5 , Reference speed:24000 r/min , Limiting speed:15000 r/min
2303G14 Self aligning ball bearings

C:19.000 mm , D:47.000 mm , Width :19.000mm , d:17.000 mm , B:19.000 mm
29460E Thrust roller bearings

Basic dynamic load rating (C):5000 kN , Reference speed:670 r/min , Limiting speed:1200 r/min , Fatigue load limit (Pu):1340 , Basic static load rating (C0):16600 kN
K89418-M Thrust roller bearings

Basic static load rating (C0):2199.6 kN , Basic dynamic load rating (C):678.9 kN , Dw:20 mm , D:190 mm , Weight:1.87 Kg
TP2236A-1 Needle roller bearings

Basic static load rating (C0):38.2 kN , Eb:33.3 mm , Basic dynamic load rating (C):9.95 kN , H:1.984 mm , Weight:0.0061 Kg , Ea:25.3 mm
TA 1825 Z Needle roller bearings

C:25 mm , Fw:18 mm , Weight:0.0305 Kg , Basic dynamic load rating (C):18.6 kN , Basic static load rating (C0):30 kN , D:25 mm
2201 Self aligning ball bearings

Calculation factor (e):0.53 , Basic static load rating (C0):1.75 kN , (Grease) Lubrication Speed:21000 r/min , (Oil) Lubrication Speed:26000 r/min , Calculation factor (Y0):1.24 , Calculation factor (Y1):1.18
24132EAW33 Thrust roller bearings

H:109.000 mm , Width :109.000mm , D:270.000 mm , d:160.000 mm
SL182984 Cylindrical roller bearings

Width :82mm , Outer Diameter :560mm , B:82 mm , D:560 mm , d:420 mm , C:82 mm
