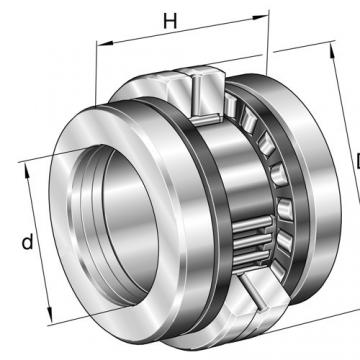

ZARN4090-TV INA Category Roller Bearings 40x90x75mm Complex bearings

Bearing numberZARN4090-TV
Size (mm)40x90x75
BrandINA
Bore Diameter (mm)40
Outer Diameter (mm)90
Width (mm)75
d40 mm
D90 mm
H75 mm
B16 mm
C25 mm
D178 mm
Da max79 mm
da min65 mm
H150 mm
r1 min0.6 mm
rmin0.3 mm
m2.09 kg / Weight
Ca117000 N / Dynamic load rating (axial)
C0a315000 N / Static load rating (axial)
Cr38000 N / Dynamic load rating (radial)
C0r74000 N / Static load rating (radial)
nG Ol3700 1/min / Limiting speed for oil lubrication (valid only with adequate oil cooling)
nG Fett1200 1/min / Limiting speed for grease lubrication
MRL2.5 Nm / Bearing frictional torque
caL3800 N/µm / Axial rigidity
ckL1800 Nm/mrad / Tilting rigidity
Mm13.3 kg x cm^2 / Mass moment of inertia for rotating inner ring
1 µm / Axial runout (The axial runout data for screw drive bearing arrangements are based on the rotating inner ring)
ZMA40/75 / Designation of recommended INA locknut
AM40 / Designation of recommended INA locknut
MA120 Nm / Tightening torque (Only valid in conjunction with INA precision locknuts)
CategoryRoller Bearings
BDI Inventory0.0
Manufacturer NameSCHAEFFLER GROUP
Minimum Buy QuantityN/A
Weight / Kilogram2.503
EAN4012802421248
Product Group – BDIB04144
