SKF YET 206-103 - Leader Industrial Manufacture

✖

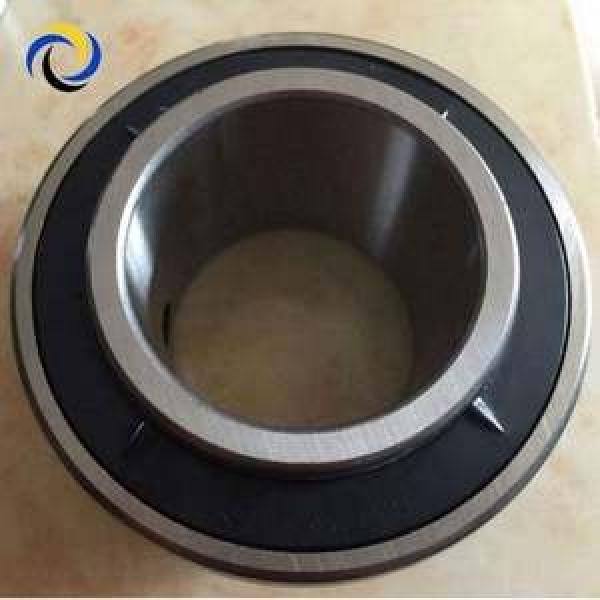

SKF YET 206-103 image

Information techniques SKF YET 206-103

Seal Type:Double Land Riding Rubber Contact
Mounting Method:Set Screw
Rolling Element:Ball Bearing
Snap Ring:No
Long Description:3/4" Bore; Wide Inner Ring; Ball Bearing; 1-7/32" Length Thru Bore; 0.55" Outer Race Width; 1.85" Outside Diameter; Relubricatable; Double Land Riding Rubber Contact Seal; Set Scre
Inch - Metric:Inch
Other Features:Single Row | Standard Duty | Powder Coated Epoxy Finish
UNSPSC:31171536
Harmonized Tariff Code:8482.10.50.00
Noun:Bearing
Keyword String:Insert
Manufacturer Item Number:GY1012KRRB SGT
Weight / LBS:0.38
D:1.85 Inch | 46.99 Millimeter
d:0.75 Inch | 19.05 Millimeter
Outer Race Width:0.55 Inch | 13.97 Millimeter
Shaft Size d:3/4 in
Bore Type:Cylindrical bore
Bearing Type:Ball Bearing
Material:Bearing Steel
Lubrication Type:Relubricatable
O.D. Type:Spherical OD
Dimension M:0.135 in
Series:Industrial
Sub Series:GY…KRRB SGT
Outside Diameter D:1.850 in
Inner Ring Width B:31.8 mm
Outside Ring Width C:14.000 mm
Radius r:0.6 mm
Center of Bearing from End S:12.7 mm
Dimension S1:19.1 mm
Set Screw Distance S2:5.87 mm
Set Screw Size:M5X.8
Number of Set Screws:2
Angle between Set Screws:90 º
Static Load Rating:1460 lbf
Dynamic Load Rating:3190 lbf
